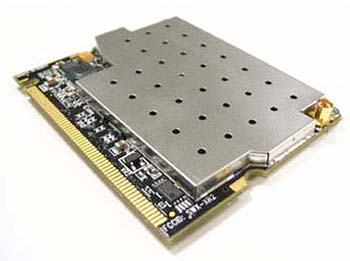

Ubiquiti Networks XtremeRange2World's first Carrier Class 2.4 GHz WiFi Mini-PCI Radio Module
600mW Avgerage TX Power and Integrated EMP/ESD Protection Circuitry
The Ultimate 2.4GHz CPE for the Global WISP Community Featuring Adaptive Antenna Polarity (AAP) Technology
The XtremeRange series of radio modules by Ubiquiti leverages our strong knowledge and experience gained from customer interactions, field performance evaluations, and lab research; and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards.
The XtremeRange2 represents the first true carrierclass 802.11b/g-based 2.4GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.
| Features: | |
| Processor Specs | Atheros, 6th Generation, AR5414 |
| Radio Operation | IEEE 802.11b/g, 2.4GHz |
| Interface | 32-bit mini-PCI Type IIIA |
| Operation Voltage | 3.3VDC |
| Antenna Ports | Single MMCX |
| Temperature Range | -45C to +90C (extended temp version up to +95C) |
| Security | 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data Rates | 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps |
| TX Channel Width Support | 5MHz / 10MHz / 20MHz / 40MHz |
| RoHS Compliance | Yes |
| Average TX Power | 28dBm, +/-1dB |
| Max Current Consumption | 1.30A, +/-100mA |
| Indoor Range (Antenna Dependent) | up to 200meters |
| Outdoor Range (Antenna Dependent) | over 50km |
| Operating System Support | Linux MADWIFI, WindowsXP, Windows2000 |
| Advanced Mobility / Quick Handoff | WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti |
| Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti |
