Ubiquiti Networks SuperRange5The Original Hi-Performance 802.11a Mini-PCI Radio. Field Proven in Backhaul Links Throughout the World.

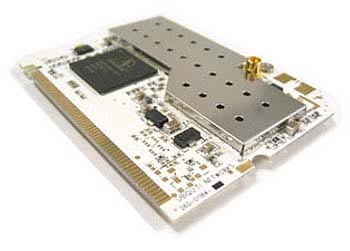

The world's first hi-performance 5GHz 802.11a mini-PCI module. Utilizing SuperRange technology, the SR5 exhibits improved output power and sensitivity over standard wireless cards. The SR5 is ideal for long distance bridging, hi-performance point-to-multipoint links, and mesh networking.
| Features: | |
| Processor Specs | Atheros, 4th Generation, AR5213 |
| Radio Operation | IEEE 802.11a, 5GHz |
| Interface | 32-bit mini-PCI Type IIIA |
| Operation Voltage | 3.3VDC |
| Antenna Ports | Single MMCX |
| Temperature Range | -40C to +80C |
| Security | 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data Rates | 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps |
| TX Channel Width Support | 5MHz / 10MHz / 20MHz / 40MHz |
| RoHS Compliance | Yes |
| Average TX Power | 26dBm, +/-1dB |
| Max Current Consumption | 1.30A, +/-100mA |
| Indoor Range (Antenna Dependent) | over 150 meters |
| Outdoor Range (Antenna Dependent) | over 50km |
| Operating System Support | Linux MADWIFI, WindowsXP, Windows2000 |
| Advanced Mobility / Quick Handoff | WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti |
| Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti |
