XtremeRange 5

XtremeRange 5; 5GHz Module Radio w/Proven 300+km Range.

Виробник:

Код товару: # 1517

на
складі

Характеристики

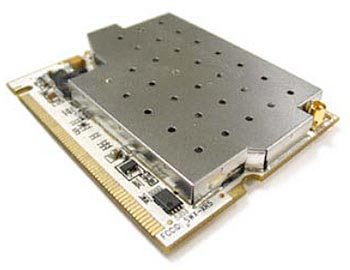

Ubiquiti Networks XtremeRange5

The World-Record Breaker with Proven 300+km Range
Featuring Industry Leading 600mW Avg TX Power (1000mW Peak).

The XtremeRange series of radio modules by Ubiquiti leverages the knowledge and experiences gained from customer interaction, field performance evaluations, and lab research -- and improves upon the original and highly successful SuperRange series of high-performance 802.11 radio cards.
The XtremeRange5 represents the first true carrierclass 802.11a based 5GHz radio module specifically designed for mesh, bridging, and infrastructure applications requiring the highest levels of performance and reliability without compromise.


Features:
Processor Specs Atheros, 6th Generation, AR5414 with SuperA/Turbo Support
Radio Operation IEEE 802.11a, 5GHz
Interface 32-bit mini-PCI Type IIIA
Operation Voltage 3.3VDC
Antenna Ports Single MMCX
Temperature Range -45C to +85C (extended temp version up to +95C)
Security 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
TX Channel Width Support 5MHz / 10MHz / 20MHz / 40MHz
RoHS Compliance Yes
Average TX Power 28dBm, +/-1.5dB
Max Current Consumption 1.80A, +/-100mA
Indoor Range (Antenna Dependent) over 150 meters
Outdoor Range (Antenna Dependent) over 50km
Operating System Support Linux MADWIFI, WindowsXP, Windows2000
Advanced Mobility / Quick Handoff WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Cisco Support CCX 4.0 Supported Driver/Utility also available from Ubiquiti
