Ubiquiti Networks XtremeRange7The World's First 700MHz WiFi Radio. Performance exceeding 65Mbps TCP/IP.

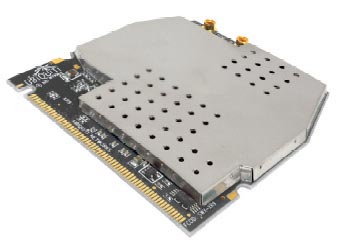

The World's first 700MHz Wifi Radio. The XR7 is a compact radio module supporting 32-bit mini-PCI Type IIIA standard and features high output power (600mW), extended temperature operation, and an innovative receiver design which provides excellent noise immunity and sensitivity performance.
Utilizing Ubiquiti's patent-pending Frequency Freedom Technology, the XR7 was designed specifically for 700MHz mobile wifi test networks as well as long-distance, outdoor broadband wireless and public safety applications.
| Features: | |
| Processor Specs | Atheros, 6th Generation, AR5414 |
| Radio Operation | Proprietary 700MHz, based on 802.11g OFDM |
| Interface | 32-bit mini-PCI Type IIIA |
| Operation Voltage | 3.3VDC |
| Antenna Ports | Dual MMCX |
| Temperature Range | -45C to +90C (extended temp version up to +95C) |
| Security | 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data Rates | 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps |
| TX Channel Width Support | 5MHz / 10MHz / 20MHz |
| RoHS Compliance | Yes |
| Average TX Power | 28dBm, +/-1dB |
| Max Current Consumption | 1.10A, +/-100mA |
| Indoor Range (Antenna Dependent) | over 400 meters |
| Outdoor Range (Antenna Dependent) | over 50km |
| Operating System Support | Linux MADWIFI, WindowsXP, Windows2000 |
| Advanced Mobility / Quick Handoff | WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti |
| Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti |
