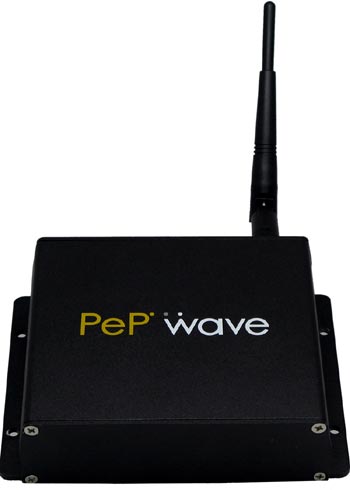

Pepwave Mesh Connector 200

Pepwave Mesh Connector 200, Cost-Effective, High-Performance Wi-Fi Repeater.

Виробник:

Код товару: # 1561

на
складі

UP DOWN

Характеристики

PePWave Mesh Connector 200

Cost-Effective, High-Performance Wi-Fi Repeater

Introducing the new PePWave Mesh Connector, the high power Wi-Fi repeater designed to help enterprises and Wireless Internet Service Providers (WISPs) extend Wi-Fi coverage efficiently and cost-effectively in office buildings, warehouse districts, cafes, airports, hotels, and sports facilities alike.

Mesh Connector acts as a Wi-Fi repeater, which helps bridge the distance between devices and links indoor workstations to the Wi-Fi mesh network. Its powerful transmission and outstanding reception capabilities guarantee the best service.

  • Transparent Functionality - Mesh Connector works as a layer-2 repeater, allowing users to roam about freely within the expanded coverage area without any interrupted service or IP address change.
  • True Layer-2 Repeater - Together with PePWave True Address Gateway, Mesh Connector is able to overcome 802.11 protocol limitations and enable layer-2 user authentication at your subscriber/access gateway.
  • Always-ON Wi-Fi Access Point - A PePWave exclusive feature, the integrated Wi-Fi AP is always-ON even if there is no connection to the mesh / Citywide Wi-Fi.
  • Two Devices in One - The PePWave Mesh Connector connects to the mesh, while at the same time, wirelessly and transparently serves an indoor local area Wi-Fi network consisting of multiple 802.11b/g devices.
  • Rugged Enclosure - Rugged aluminum enclosure enables the deployment in a variety of locations and embedded applications.
  • High Power Indoor Access Point and Receive Sensitivity - Equipped with a high-power radio unit, Mesh Connector provides strong transmit power to facilitate enhanced Wi-Fi signal penetration.
  • Die Cast Aluminum Enclosure for Mesh Connector Outdoor - NEMA 6 (IP 67) rating, dust and water resistance, as well as physical durability withstand extreme weather conditions.


Easy-to-Deploy Solution for Wi-Fi Coverage Expansion
  • Allow enterprise customers seamless connections at existing work places, warehouse districts and factory locations
  • Enable WISPs to expand Wi-Fi coverage to a wide range of public locations utilizing existing hotspot infrastructure

Transparent Bridge Functionality

  • Enables users to roam about freely within the extended coverage area without any interrupted access or IP address change
  • Easy to manage end users

High Indoor Transmit Power and Extensible Receive Sensitivity

  • Allow enterprises and WISPs to extend Wi-Fi coverage to large-scale indoor areas
  • Extensible receive sensitivity with external RP-TNC Male connector

Always-ON, Integrated Wi-Fi Access Point

  • Connect with the mesh via 802.11b/g Wi-Fi and Standard Ethernet
  • Indoor AP is always-ON even if there is no connection to the mesh / Citywide Wi-Fi

Dynamic Power Control

  • Intelligently use high power to communicate with the mesh and adjustable indoor power to provide coverage where needed
  • Maximize radio efficiency and network performance

Metallic Case

  • Industrial grade, rugged aluminum case enables deployment in a variety of locations
  • Mesh Connector Outdoor: NEMA 6 (IP 67) rating, dust and water resistance, as well as physical durability withstands extreme weather conditions

Cost Saving Wi-Fi Network Development

  • Utilize flexible and small-sized mesh connectors instead of costly mesh network nodes
  • Hardware Watchdog increases service availability and guarantees firmware integrity

Secure and Reliable Citywide Wi-Fi

  • Support authentication and encryption policies via 802.1x/WEP/WPA/WPA2/802.11i
  • Built-in firewall to protect customers from common Internet worms and attacks

Remote Management

  • Manageability via service provider-grade PePWave Central Management System (PCMS)
  • Device-level firmware control, device configuration, security alerts, and reports through one interface

Specification

Model Mesh Connector E200 Mesh Connector 200 Mesh Connector 400 Mesh Connector E200-X Mesh Connector 400-X
Product Code MPW-201 MPW-200 MPW-400 MPW-203 MPW-401
Country/Region Europe US/International US/International Europe US/International
Functionality
Wi-Fi Repeater Yes
Mode Bridge Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz 2412-2462Mhz 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b		 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)
Transmit Power
802.11g OFDM		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)		 94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)		 -94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna

5dBi Omni Antenna

 Not Included
Antenna Connector RP-SMA Connector Female N-Type Connector
Enclosure Ruggedized Metal Enclosure Waterproof (IP67) Outdoor Metal Enclosure
Dimensions

127.1W x 107.4D x 32.1H mm.
5.0W x 4.2D x 1.3H in.

273W x 188D x 65H mm.
10.7W x 7.4D x 2.6H in.
Weight 330g
0.7lb 		1.7 kg.
3.8 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 7W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
Passive PoE Adapter : DC 12V		 Power over Ethernet 802.3af
(Adapter Not Included)
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS FCC, RoHS CE, RoHS FCC, RoHS
Warranty

Package Content
(Mesh Connector E200, 200, 400)
  • 12V Power Supply
  • 5dBi Maganetic-base Omni Antenna
  • Passive PoE Adapter
  • Documentation CD-ROM

Package Content
(Mesh Connector E200-X, 400-X)
  • Mounting Kit
  • Installation Guide
  • Documentation CD-ROM
