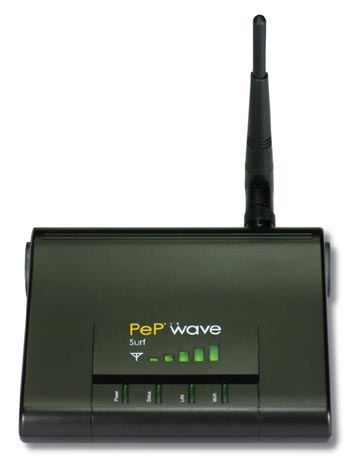

Pepwave Surf AP 400

Pepwave Surf AP 400, 400 mW Wi-Fi modem designed for Citywide Wi-Fi.

Виробник:

Код товару: # 1560

на
складі

UP DOWN

Характеристики

PePWave Surf AP 400 (400 mW)

Introducing the stable, user-friendly, reliable, and flexible Wi-Fi modem designed for Citywide Wi-Fi. The new PePWave Surf AP now comes with Always-ON Integrated Home AP and Signal Bars!

The PePWave Surf series of Wi-Fi modems is an ideal solution to flexibly extend Citywide Wi-Fi to indoor areas.

  • Integrated Home Wi-Fi Access Point.
    With the new Integrated Home AP feature, the PePWave Surf AP can connect to the Citywide mesh network while also wirelessly serving an indoor wireless LAN consisting of multiple 802.11b/g devices.
  • Always-ON Home AP.
    Being unique in the industry, the Integrated Home AP is Always-ON even if there is no connection to the mesh network. Latest Surf AP firmware required.
  • High Power and Receive Sensitivity.
    Each PePWave Surf model is equipped with a high-power radio unit and a 5dBi antenna that provide sufficient transmit power and receive sensitivity to facilitate enhanced Citywide Wi-Fi signal penetration.
  • Fewer Home Devices.
    PePWave Surf AP can fully replace a separate traditional home Access Point device because its Integrated Home Wi-Fi Access Point feature is always-on and working independent to the status of the citywide Wi-Fi.
  • Dynamic Power Control.
    Its unique dynamic power control capability allows PePWave Surf AP to use high power when communicating with the metro-scale mesh network, and retain a lower power setting for indoor home devices – thus maximizing radio efficiency and network performance.
Always-ON, Integrated Home Wi-Fi Access Point(Surf AP Models)
  • Connect with Citywide Wi-Fi via 802.11b/g Wi-Fi and Standard Ethernet
  • Deliver in-home wireless service easily with this all-in-one device
  • Unique! Home AP is always-ON even if there is no connection to the mesh / Citywide Wi-Fi
  • Fewer home devices! Always-ON capability replaces the need for a separate home AP device

Signal Bars

  • A group of five LEDs built-in on the top panel displaying in real-time the strength of received signals
  • Easy to find the best location with strongest signals

High Transmit Power and Extensible Receive Sensitivity

  • 200mW/400mW transmit power for stable and reliable connections with Citywide Wi-Fi
  • Extensible receive sensitivity with external RP-TNC Male connector

Dynamic Power Control

  • Intelligently use high power when communicating with the metro-scale mesh network
  • Retain a lower power setting for indoor home devices (Surf AP Models)
  • Maximize radio efficiency and network performance

Secure and Reliable Citywide Wi-Fi

  • Provide secure authentication and encryption via 802.1x/WEP/WPA/WPA2/802.11i
  • Built-in firewall to protect customers from common Internet worms and attacks

Flexible Client Devices Management

  • Built-in DHCP server and NAT routing to manage client devices
  • Port forwarding to support gaming and special applications

User Friendly and Easy Self Provisioning

  • True plug-n-play
  • Customizable, built-in web portal for simple web-based self configuration
  • Support automatic configuration
  • Hardware Watchdog increases sevice availability and guarantees firmware integrity

Bandwidth Control

  • Allow easy provisioning of different service levels

Co-branding and Customization

  • Site-specific connection profiles
  • Service Provider Program (details...)

Remote Management

  • Manageability via service provider-grade PePLink Central Management System (PCMS)
  • Device-level firmware control, device configuration, security alerts, and reports

Stylish Indoor Packaging

  • Lightweight, small factor for residential use
PePWave Surf is the proven solution for Citywide Wi-Fi, where uninterrupted carrier-grade service is a no-compromise requirement. Its powerful transmission and outstanding reception capabilities guarantee the best service, even for customers far from the nearest Wi-Fi access point.


Specification

Model Surf E200 Surf AP E200 Surf 200 Surf AP 200 Surf AP 400
Product Code SPW-202 SPW-203 SPW-200 SPW-201 SPW-400
Country/Region Europe US/International
Functionality
Wi-Fi Receiver Yes
Wi-Fi Access Point   Yes   Yes Yes
Mode NAT Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 1 Fast Ethernet Port 802.11 b/g
1 Fast Ethernet Port		 1 Fast Ethernet Port 802.11 b/g
1 Fast Ethernet Port		 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b		 100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/-1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/-1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/-1.0dB)

Transmit Power
802.11g OFDM		 20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)

20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)

 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)		 26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)

-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)		 -97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM		 -94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB) 		-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Signal Bars Yes
Antenna 5dBi Omni Antenna
Antenna Connector RP-SMA Connector
Enclosure Indoor Plastic Enclosure
Dimensions

132.7W x 38.6D x 118.1H mm.
5.2W x 1.5D x 4.6 H in.
Weight

240 g.
0.5 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 5W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS
Warranty

Package Content
  • 12V Power Supply
  • 5dBi Omni-directional Antenna
  • Windows Mount - Suction Cup x 2
  • Setup Guide
  • Ethernet Cable
  • Documentation CD-ROM
