Adtran NetVanta 1224R PoE

Характеристики

NetVanta 1224R PoE Benefits:

• Converged LAN/WAN architecture
• Lower total cost of ownership
• Efficient bandwidth usage
• Space-savings, equipment consolidation
• Simplified network administration


NetVanta 1224R PoE Features:

• Full-featured, managed Layer 2 switch-routers
• 24-port Ethernet, Fast Ethernet, Power over Ethernet, and Gigabit Ethernet functionality
• Unique all-in-one switching/routing/firewall/VPN platforms
• Interoperable in established, multi-vendor networks
• 8.8 Gbps switching capacity, non-blocking
• Gigabit SFP/1000Base-T uplink/ stacking capability available
• Stacking up to 16 switches with single IP address management
• Link Aggregation, GVRP, and LLDP
• MAC-based port security
• SIP ALG for NAT traversal in VoIP applications
• Easily recognizable Command Line Interface (CLI)
• Intuitive web-based Graphical User Interface (GUI)
• Free firmware updates
• Unlimited, responsive, toll-free technical support
• Industry-leading five-year North American warranty


The NetVanta® 1000 Series from ADTRAN® is a standards-based, non-blocking Layer 2 switching solution suitable for converged LAN/WAN access, interconnecting LAN devices, for network segmentation, or for powering LAN network devices.

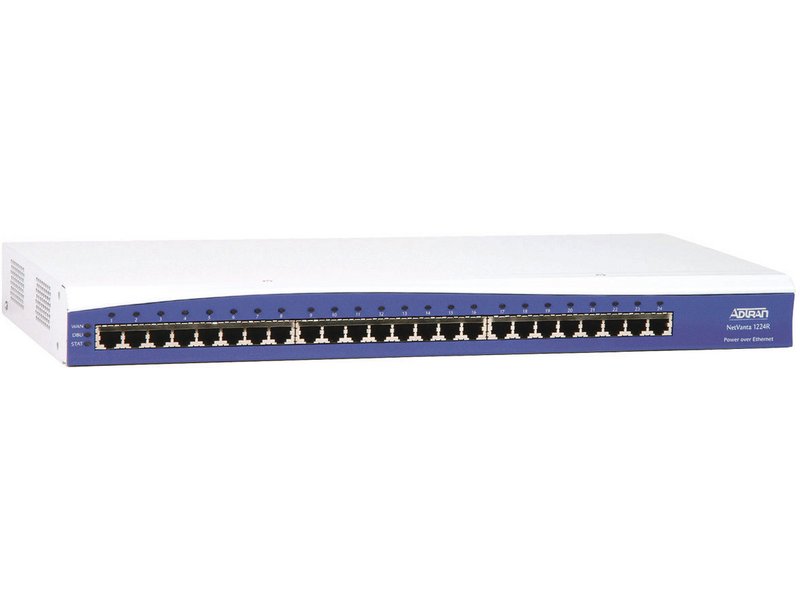

The NetVanta 1224R PoE (Power over Ethernet) and 1224STR PoE are unique, all-in-one access platforms that combine a 24 port Ethernet switch, an IP access router, a modular WAN interface with built-in DSU/CSU, a stateful inspection firewall, and the option for Virtual Private networking (VPN), all in a single 1U chassis. The 1224R PoE and STR PoE provide 24-port Ethernet and Fast Ethernet switching, with the STR PoE offering two extra 1000Base-T/SFP Gigabit ports for uplink or stacking capability.

Modular Hardware
A single WAN access slot in the back of the NetVanta chassis supports a variety of Network Interface Modules (NIMs) including ADSL, 56/64k, T1/FT1, T1/FT1 with DSX-1, E1/FE1, E1/FE1 with G.703, Dual T1, or a serial interface. The optional Analog or ISDN BRI Dial Backup Modules (DIMs) support a solid business continuity plan by dialing around a failed circuit to any PPP-compliant device. The ADSL NIM may also be used for broadband backup, allowing for larger bandwidth applications and faster data rates.

Standard-based Protocols
Based on the ADTRAN Operating System (AOS), these devices offer support for 802.1Q Virtual LANs (VLANs), Port-based switching features include Broadcast Storm Control, 802.1D and 802.1w Spanning/Rapid Spanning Tree, Link Aggregation, Port Mirroring, and GVRP. Link Layer Discovery Protocol (LLDP) auto-discovers neighboring Ethernet devices, simplifying integration into multi-vendor environments.

In addition the integral IP router provides costeffective Internet access, corporate Frame Relay or point-to-point connectivity using standard routing protocols such as BGP, OSPF and RIP.

Power over Ethernet
The NetVanta 1224R PoE and 1224STR PoE platforms provide standards-based 802.3af PoE functionality for powering IP phones, Wireless Access Points (WAPs), or other devices requiring LAN power. The products support up to 15.4 watts per port or 370 watts total.

Security
Rest assured, with the NetVanta 1224R PoE and STR PoE your network is protected. Each platform comes standard with a stateful inspection firewall to stop intruders and common Denial of Service (DoS) attacks. These products also offer a variety of data security features including MAC-based port security, multilevel user passwords, Secure Shell (SSH) and Secure Socket Layer (SSL) for encrypted user login, and Access Authentication and Authorization (AAA) with RADIUS, RSA SecurID, or TACACS+. For added security, these platforms offer a VPN upgrade supporting up to 500 IPSec tunnels using DES, 3DES or AES encryption.

Quality of Service (QoS)
The NetVanta switch-routers support QoS to prioritize mission critical traffic and control network congestion at various layers of the OSI model. On the LAN, the NetVanta 1000 Series offers 802.1p and DiffServ Class of Service (CoS). To assign priority to traffic, Weighted Round Robin and Strict Priority Queuing is used with four egress queues per port. For the WAN, DiffServ marking, Low Latency Queuing, and Weighted Fair Queuing provide priority for IP packets routed over the WAN. Together these features offer a powerful end-to-end QoS story.

VoIP Ready
In combination with the QoS features, a specialized SIP Application Layer Gateway (ALG) allows SIP traffic to traverse NAT-enabled firewalls. For an enterprise network, this interoperability allows IP PBXs, phones, and other SIP-based devices to set up, tear down, and pass voice and call control messages seamlessly through the integral NAT-enabled firewall.

Administration
The AOS offers both a Command Line Interface (CLI) that mimics the widely deployed, industry de facto standard and an intuitive web-based GUI with step-by-step configuration wizards. For a centralized enterprise-wide management scheme, ADTRAN offers n-Command®, an intuitive, scalable software suite for managing firmware revisions, push firmware upgrades and configuration changes, backup and restore configurations, and manage security policies and Access Control Lists (ACLs).

Network Interfaces

NIM (Network Interface Modules)

• 56/64K
• T1/FT1
• Dual T1
• T1/FT1 with DSX-1
• ADSL
• E1/FE1
• E1/FE1 with G.703
• SHDSL
• Serial (V.35, X.21/V.11)


DIM (Dial Backup Interface Modules)

• Analog Modem
• ISDN BRI ‘U’ and ‘ST’


24 Fast Ethernet Ports

• 10/100Base-T
• Auto-duplex
• Auto-rate
• Auto-MDI/MDI-X


Gigabit Ethernet Port (1224STR PoE)

• Two combo Gigabit Ethernet port supporting both 10/100/1000Base-T and SFP for copper or optical connectivity
• Auto-duplex
• Auto-rate
• Auto-MDI/MDI-X


Console Port

• DB-9

Switching Performance

• Non-blocking
• 8,000 MAC Addresses
• 16-MB memory shared by all ports


Maximum Forwarding Bandwidth

• 1224R PoE: 4.8 Gbps
• 1224STR PoE: 8.8 Gbps


Routing Performance

• 133 MHz Motorola MPC 866
• 32 MB DRAM
• 16 MB Flash
• 30,000 PPS


Status LEDs

• Power
• WAN: Link, Activity, Alarm, Test
• DBU: Link, In DBU, Alarm, Test
• Ethernet Port Status: Link, Activity, PoE Status


Protocols

• eBGP/iBGP
• PPP
• OSPF
• Multilink PPP
• RIP (v1 and v2)
• PPPoE
• PIM Sparse Mode
• PPPoA
• Demand Routing
• IGMP v2
• Policy-based Routing
• RFC 1483
• GRE
• HDLC
• ATM (ADSL)
• PPP Dial Backup
• Frame Relay
• PAP and CHAP
• Multilink Frame Relay
• Multihoming
• Layer 3 Backup


DHCP

• Client, Server and Relay

Spanning Tree Support

• 802.1D Spanning Tree
• 802.1w Rapid Spanning Tree


Frame Relay

• Point-to-Point
• RFC 1490 Encapsulation (Multiprotocol Over Frame Relay)
• LMI Types: LMI, CCITT (Annex A), ANSI (Annex D), Static


VLAN Support

• Port based VLANs
• 802.1Q tagged trunked VLANs
• Support for up to 255 active VLANs
• Inter-VLAN routing
• GARP VLAN Registration Protocol (GVRP)


Power over Ethernet

• 802.3af (15.4 watts/port)
• 370 total watts
• Power provided over Ethernet data leads


Link Aggregation

• 802.3ad Link Aggregation
• Support for six trunk groups
• Trunk groups consist of up to eight access ports


Class of Service (LAN Traffic)

• Enforces 802.1p priorities
• DiffServ
• Four output queues per egress port
• Weighted Round Robin
• Strict Priority Queuing


Quality of Service (WAN Traffic)

• Low Latency Queuing
• Weighted Fair Queuing (WFQ)
• Class-based WFQ
• DiffServ aware/mark
• Frame Relay Fragmentation (FRF.12)


Security

Firewall

• Stateful Inspection Firewall
• Denial of Service (DoS) Protection
• Access Control Lists (ACLs)
• Application Level Gateways (ALGs)


Optional Virtual Private Network (VPN)

• IPSec Tunnel Mode: 500 Tunnels
• Encryption: DES, 3DES, and AES
• Diffie Hellman Group Support: Group 1: MODP 768, Group 2: MODP1024
• Hash Algorithms: MD5-HMAC and SHA1-HMAC
• Authentication Mechanisms: XAUTH, X.509 Digital Certificates, Preshared Keys, Secure ID, DSS Signature
• Key Management: IKE (ISAKMP/Oakley)
• IKE Modes: Main, Aggressive, Perfect Forward Secrecy, Mode Configuration
• Dead Peer Detection
• NAT Traversal V3


Network Address Translation

• Basic NAT (1:1), NAPT (Many:1), and Port Translation
• NAT compatible SIP ALG


Secure Management

• Multi-level access control
• TACACS+
• RADIUS AAA
• SSH CLI and SSL GUI


Network Access Control

• Port Authentication (802.1x)
• MAC-based Port Security
• Private VLAN Edge


Administration

• Familiar Command Line Interface (CLI)
• Web-based GUI
• n-Command® support
• SNMP v3
• SYSLOG Logging
• Email Alerts (SMTP)
• Policy Statistics
• SNTP Client/Server


Diagnostics

• Port Mirroring
• Ping
• Traceroute
• LLDP (802.1ab)


Environment

• Operating Temperature: 0° to 50 °C (32° to 122 °F)
• Storage Temperature: -20° to 70 °C (-4° to 158 °F)
• Relative Humidity: Up to 95%, non-condensing


Physical

• Chassis: 1U, 19“ rackmountable metal enclosure
• Dimensions: 1.7” H, 17.2” W, 12.8” D
• Weight: 12 lbs.
• AC Power: 100–250 VAC, 50/60 Hz
• Power: 450 watts
