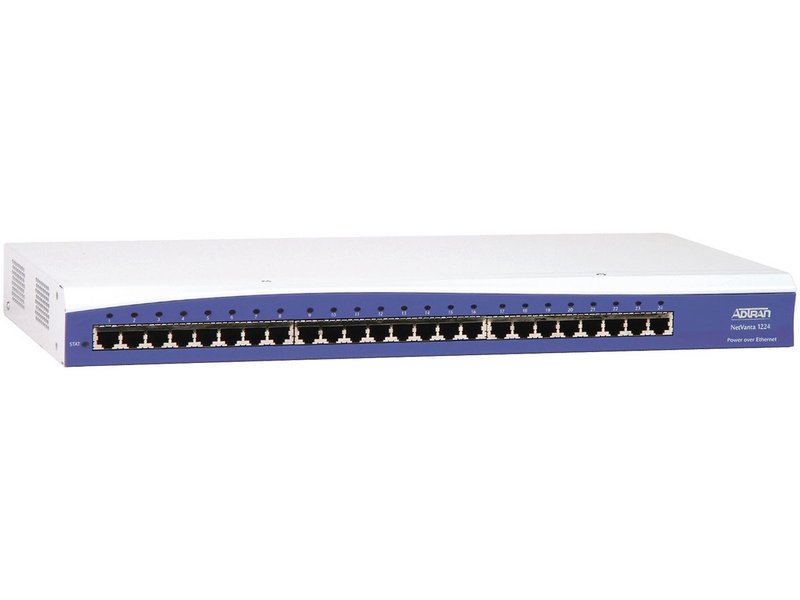

Adtran NetVanta 1224

Характеристики

NetVanta 1224 Features:

• 24-port auto-sensing10/100Base-T managed Layer 2 Ethernet switch
• Available with SFP/1000Base-T Gigabit uplink ports
• Non-blocking, up to 8.8 Gbps switching capacity
• 802.1Q tagged and portbased VLANS
• Support for up to 255 active VLANs
• Stack up to 16 and manage stack via a single IP address
• 802.1p and DiffServ prioritization with four queues per egress port
• Link aggregation, GVRP,and LLDP
• MAC-based port secuity
• Weighted Round Robin (WRR) and Strict Priority Queuing
• 802.1D Spanning Tree and 802.1w Rapid Spanning Tree support
• DHCP address management
• RADIUS authentication
• Port mirroring
• TFTP/FTP firmware upgrades
• Broadcast storm controL
• Dual firmware images
• Familiar Command Line Interface (CLI)
• Web-based GUI
• Industry-leading five-year North American warranty


The NetVanta®1000 Series of managed Ethernet switches is designed for cost-effective Local Area Network (LAN) switching.

This scalable, full-featured product line is suitable for networks requiring Layer 2 access switches for interconnecting LAN devices or network segmentation. Ideal for new installations or network upgrades, these switches are perfect for business-class applications requiring Fast Ethernet.

Hardware
The NetVanta 1224 and 1224ST rackmount switches support 24 10/100Base-T Ethernet ports with auto-rate, auto-duplexing, and MDI/MDI-X sensing. The NetVanta 1224ST also supports two 10/100/1000Base-T or Small Form-factor Pluggable (SFP) ports for copper or fiber high-speed uplink or stacking capability. The 1224ST can support up to 16 units stacked together and easily managed with a single IP address for the entire stack.

Physical Interface

24 Fast Ethernet Ports

• 10/100Base-T
• RJ-45
• Auto rate/duplex/MDI/MDI-X


Dual Gigabit Ethernet Ports (1224ST)

• Two 10/100/1000Base-T ports for copper connectivity
• Two SFP slots for optical connectivity


Console Port

• DB-9, RS-232

Performance

• Non-blocking
• 8000 MAC addresses
• 16 MB memory shared by all ports


Maximum Forwarding Bandwidth

• NetVanta 1224: 4.8 Gbps
• NetVanta 1224ST: 8.8 Gbps


Diagnostics

• Port Mirroring
• LLDP (802.1AB)

Front Panel Status LEDs

• Power
• LAN: link, activity


Port Statistics

• Number of TX/RX Frames
• Number of Collisions
• Number of Errors


Spanning Tree Support

• 802.1D Spanning Tree
• 802.1w Rapid Spanning Tree


Stacking (1224ST only)

• Up to 16 switches
• Single IP address for entire stack
• Utilizes built-in 1000Base-T or SFP interfaces


Link Aggregation

• 802.3ad Link Aggregation
• Support for six trunk groups
• Trunk groups consist of up to eight access ports or two uplink ports


Quality of Service

• 802.1p and DiffServ
• Four output queues per egress port
• Weighted Round Robin (WRR) or Strict Priority Queuing


VLAN Support

• Port-based VLANs
• 802.1Q tagged trunked VLANs
• Support for up to 255 active VLANs
• Generic VLAN Registration Protocol (GVRP)


Storm Control

• Broadcast, Unicast, and Multicast

Administration

• Familiar Command Line Interface (CLI)
• Web-based GUI
• n-Command™ support
• SNMP v2
• SYSLOG Logging
• Email Alerts (SMTP)
• Policy Statistics


Network Access Control

• Port authentication (802.1x)
• Mac-based port security


Environment

• Operating temperature: 0° to 50 °C (32° to 122 °F)
• Storage temperature: -20° to 70 °C (-4° to 158 °F)
• Relative humidity: Up to 95%, non-condensing


Physical

• Chassis: 1U, 19” rackmountable metal enclosure
• Dimensions: 1.7” H, 17.2” W, 7.8” D
• Weight: 7 lbs.
• AC power: 100–250 VAC, 50/60 Hz
• Power: 25 Watts

Equipment	Part #
NetVanta 1224	1200500L1
NetVanta 1224ST	1200504L1
NetVanta 1000BaseSX SFP (LC Connectors)	1200480L1
NetVanta 1000BaseLX SFP (LC Connectors)	1200481L1
