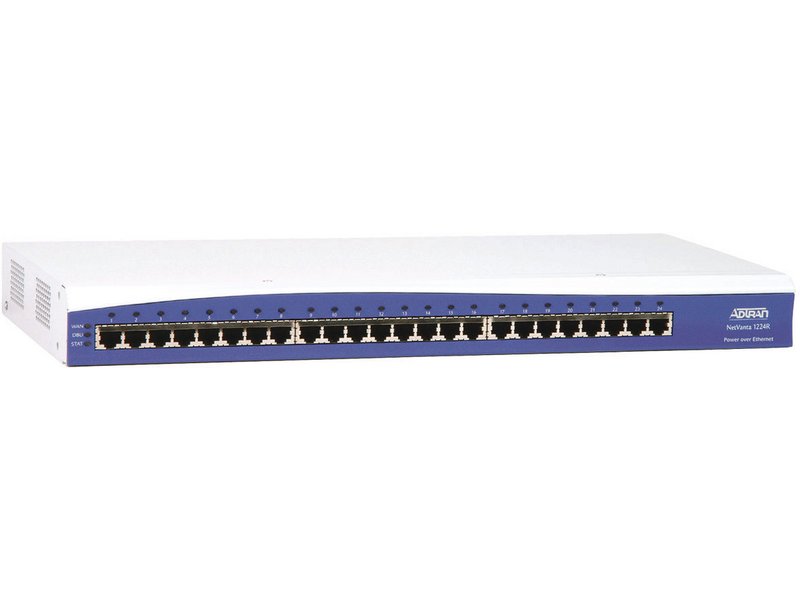

Adtran NetVanta 1224R

The NetVanta 1224R is unique, all-in-one access platforms that combine a 24 port Ethernet switch, an IP access router, a modular WAN interface with built-in DSU/CSU, a stateful inspection firewall, and the option for Virtual Private Networking (VPN), all in a single 1U chassis.

Виробник:

Код товару: # 1849

на
складі

Характеристики

NetVanta 1224R Benefits

  • Converged LAN/WAN architecture
  • Lower total cost of ownership
  • Efficient bandwidth usage
  • Space-savings, equipment consolidation
  • Simplified network administration

Product Features
  • Full-featured, managed Layer 2 switch-routers
  • 24-port Ethernet, Fast Ethernet, and Gigabit Ethernet functionality
  • Unique all-in-one switching/routing/firewall/VPN platforms
  • Interoperable in established, multi-vendor networks
  • 8.8 Gbps switching capacity, non-blocking
  • Gigabit SFP/1000Base-T uplink/stacking capability available
  • Stacking up to 16 switches with single IP address management
  • Link Aggregation, GVRP, and LLDP
  • MAC-based port security
  • SIP ALG for NAT traversal in VoIP applications
  • Easily recognizable Command Line Interface (CLI)
  • Intuitive web-based Graphical User Interface (GUI)
  • Free firmware updates
  • Unlimited, responsive, toll-free technical support
  • Industry-leading five-year North American warranty

The NetVanta® 1000 Series from ADTRAN® is a standards-based, non-blocking Layer 2 switching solution available at a cost up to 50 percent less than competing switches.



Network Interfaces

24 Fast Ethernet Ports

  • 10/100 Base-T
  • Auto-Duplex
  • Auto-Rate
  • Auto-MDI/MDI-X

Gigabit Ethernet Port (1224STR)
  • Two 10/100/1000Base-T ports for copper connectivity
  • Two SFP slots for optical connectivity
  • Auto-Duplex
  • Auto-Rate
  • Auto-MDI/MDI-X

NIM (Network Interface Modules)
  • 56/64k
  • T1/FT1
  • Dual T1
  • ADSL
  • T1/FT1 with DSX-1
  • E1/FE1
  • E1/FE1 with G.703
  • Serial (V.35, X.21/V.11)

DIM (Dial Backup Interface Modules)
  • Analog Modem
  • ISDN BRI ‘U’ and ‘ST’

Console Port
  • DB-9

Switching Performance
  • Non-blocking
  • 8,000 MAC Addresses
  • 16-MB memory shared by all ports

Maximum Forwarding Bandwidth
  • 1224R: 4.8 Gbps
  • 1224STR: 8.8 Gbps

Routing Performance
  • 133 MHz Motorola MPC 866
  • 32 MB DRAM
  • 16 MB Flash
  • 30,000 PPS

Status LEDs
  • Power
  • WAN: Link, Activity, Alarm, Test
  • DBU: Link, In DBU, Alarm, Test
  • Ethernet Port Status: Link, Activity, PoE Status

Protocols
  • BGP
  • PPP
  • OSPF
  • PPPoE
  • RIP (v1 and v2)
  • Multilink PPP
  • GRE
  • HDLC
  • IGMP v2
  • PPP Dial Backup
  • Frame Relay
  • PAP and CHAP
  • Multilink Frame Relay

DHCP
  • Client, Server and Relay

Spanning Tree Support
  • 802.1D Spanning Tree
  • 802.1w Rapid Spanning Tree

Frame Relay
  • Point-to-Point
  • RFC1490 Encapsulation (Multiprotocol Over Frame Relay)
  • LMI Types: LMI, CCITT (Annex A), ANSI (Annex D), Static

VLAN Support
  • Port based VLANs
  • 802.1Q tagged trunked VLANs
  • Support for up to 255 active VLANs
  • Inter-VLAN routing
  • GARP VLAN Registration Protocol (GVRP)

Link Aggregation
  • 802.3ad Link Aggregation
  • Support for six trunk groups
  • Trunk groups consist of up to eight access ports

Class of Service (Switching-Layer 2)
  • Enforces 802.1p priorities
  • DiffServ
  • Four output queues per egress port
  • Weighted Round Robin or Strict Priority Queuing

Quality of Service (Routing-Layer 3)
  • Low Latency Queuing
  • Weighted Fair Queuing (WFQ)
  • DiffServ aware/mark
  • Frame Relay Fragmentation (FRF.12)

Security

Firewall
  • Stateful Inspection Firewall
  • Denial of Service (DoS) Protection
  • Access Control Lists (ACLs)
  • Application Level Gateways (ALGs)

Optional Virtual Private Network (VPN)
  • IPSec Mode: Tunnel
  • Encryption: DES, 3DES, and AES
  • Diffie Hellman Group Support: Group 1: MODP 768, Group 2: MODP 1024
  • Hash Algorithms: MD5-HMAC and SHA1-HMAC
  • Authentication Mechanisms: XAUTH, X.509 Digital Certificates, Preshared Keys, Secure ID, DSS Signature
  • Key Management: IKE (ISAKMP/Oakley)
  • IKE Modes: Main, Aggressive, Perfect Forward Secrecy, Mode Configuration
  • Dead Peer Detection
  • NAT Traversal V2

Network Address Translation
  • Basic NAT (1:1) and NAPT (Many:1)
  • NAT compatible SIP ALG

Secure Management
  • Multi-level access control
  • RADIUS AAA
  • SSH CLI and SSL GUI

Network Access Control
  • Port Authentication (802.1x)
  • MAC-based Port Security

Administration
  • Familiar Command Line Interface (CLI)
  • Web-based GUI
  • n-Command™ support
  • SNMP v2
  • SYSLOG Logging
  • Email Alerts (SMTP)
  • Policy Statistics

Diagnostics
  • Port Mirroring
  • Ping
  • Traceroute
  • LLDP (802.1ab)

Environment
  • Operating Temperature: 0° to 50 °C (32° to 122 °F)
  • Storage Temperature: -20° to 70 °C (-4° to 158 °F)
  • Relative Humidity: Up to 95%, non-condensing

Physical

  • Chassis: 1U, 19" rackmountable metal enclosure
  • Dimensions: 1.7” H, 17.2” W, 7.8” D
  • Weight: 7 lbs.
  • Power: 25 Watts
