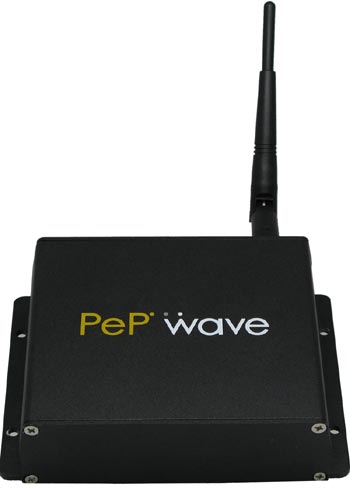

Pepwave PolePoint 200

Pepwave PolePoint 200, Carrier-Grade 200mW WLAN Solution for All Business Needs.

Виробник:

Код товару: # 1563

на
складі

Характеристики

PePWave PolePoint 200; Carrier-Grade 200mW WLAN Solution for All Business Needs

Introducing the new generation PePWave PolePoint Wi-Fi AP and Central Management System (PCMS), the advanced WLAN solution with powerful features and innovative management system designed to meet the needs of all businesses.

PePWave PolePoint - Wi-Fi AP with enterprise grade features and superior Wi-Fi radio technology. The PolePoint AP, featuring High transmit power (up to 400mW), virtual AP (16 SSIDs), QoS, and wide-temperature support is available in multiple form factors suitable for indoor or tough outdoor conditions.

PePWave Central Management System (PCMS) - PCMS is a web2.0 application hosted by PePWave, thus no client software installation is required. As a comprehensive suite, it allows you to centrally create, manage and monitor wireless networks with ease. With our innovative approach to network provisioning, you can setup new WLAN networks in minutes!

A PolePoint AP provides multiple wireless LAN's giving customized access to various user groups, with simple web management and monitoring.

The PePWave WLAN Solution:
Simple Setup - Setting up a wireless network is as easy as three steps.

  • Sign up for your free account at PePWave Central Management System (PCMS).
  • Create and apply configuration profile(s) to target PolePoint AP's.
  • Power up your PolePoint devices, and plug them into an Internet connected network.

Self-configuration and discovery - No manual configuration is needed for individual PolePoint AP's. Your network will configure itself within minutes, no matter how many PolePoint devices you are deploying!


The PePWave PolePoint AP
Superior Radio Design – PolePoint uses radio technology engineered from the ground up with the best performance features. Our extensive engineering gives you better coverage and faster performance.

Multimedia over Wi-Fi - PolePoint allows you to prioritize specific WLAN's to keep critical applications running smoothly.

Rugged Enclosure - Rugged aluminum enclosure ensures durability for use in a variety of locations such as large corporate environments, office, campus, hotels, hospitals and clinics.


The PePWave Central Management System
Central Management - Use our comprehensive suite of network management tools to manage several networks, all from one elegant and intuitive web interface.

Comprehensive Control - PCMS allows you to quickly view and change the configuration of your PolePoint devices. Configuration profiles make network changes simple, whether you are modifying existing devices or adding new ones. All you need to do is apply your profile(s) to target PolePoint devices, and you're done.

Specification

Model PolePoint E200 PolePoint 200 PolePoint 400 PolePoint E200-X PolePoint 400-X
Product Code PPW-201 PPW-200 PPW-400 PPW-202 PPW-401
Country/Region Europe US/International US/International Europe US/International
Functionality
Wi-Fi Access Point Yes
Mode Bridge Mode
Wi-Fi Specification
WAN 802.11 b/g
LAN 802.11 b/g
1 Fast Ethernet Port
Operating Frequency 2412-2472Mhz 2412-2462Mhz 2412-2462Mhz 2412-2472Mhz 2412-2462Mhz
Transmit Power
802.11b
100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

200mW

23dBm@1Mbps
23dBm@2Mbps
23dBm@5.5Mbps
23dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

100mW

20dBm@1Mbps
20dBm@2Mbps
20dBm@5.5Mbps
20dBm@11Mbps

(+/- 1.0dB)

400mW

26dBm@1Mbps
26dBm@2Mbps
26dBm@5.5Mbps
26dBm@11Mbps

(+/- 1.0dB)

Transmit Power
802.11g OFDM
20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
23dBm@6Mbps
23dBm@9Mbps
23dBm@12Mbps
23dBm@18Mbps
23dBm@24Mbps
23dBm@36Mbps
21dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
20dBm@6Mbps
20dBm@9Mbps
20dBm@12Mbps
20dBm@18Mbps
20dBm@24Mbps
20dBm@36Mbps
20dBm@48Mbps
20dBm@54Mbps

(+/- 1.0dB)
26dBm@6Mbps
26dBm@9Mbps
26dBm@12Mbps
26dBm@18Mbps
26dBm@24Mbps
24dBm@36Mbps
22dBm@48Mbps
21dBm@54Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11b
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
-96dBm@1Mbps
-95dBm@2Mbps
-94dBm@5.5Mbps
-92dBm@11Mbps

(+/- 1.0dB)
-97dBm@1Mbps
-96dBm@2Mbps
-95dBm@5.5Mbps
-93dBm@11Mbps

(+/- 1.0dB)
Receive Sensitivity
802.11g OFDM
-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
94dBm@6Mbps
-92dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-82dBm@36Mbps
-76dBm@48Mbps
-74dBm@54Mbps

(+/- 1.0dB)
-94dBm@6Mbps
-93dBm@9Mbps
-91dBm@12Mbps
-90dBm@18Mbps
-87dBm@24Mbps
-83dBm@36Mbps
-77dBm@48Mbps
-75dBm@54Mbps

(+/- 1.0dB)
Security 802.1x, 64/128-bit WEP, WPA, WPA2, 802.11i
Hardware
Antenna

5dBi Omni Antenna

8dbi Omni Fiberglass Outdoor Antenna
Antenna Connector RP-SMA Connector Female N-Type Connector
Enclosure Ruggedized Metal Enclosure Waterproof (IP67) Outdoor Metal Enclosure
Dimensions

127.1W x 107.4D x 32.1H mm.
5.0W x 4.2D x 1.3H in.

273W x 188D x 65H mm.
10.7W x 7.4D x 2.6H in.

Weight 330g
0.7lb
1.7 kg.
3.8 lb.
Operational Specificaitons
Power Consumption 5W (Max.) 5W (Max.) 7W (Max.) 5W (Max.) 7W (Max.)
Power Input AC Adapter: AC Input 100 to 240V, DC Output 12V
Passive PoE Adapter : DC 12V
Power over Ethernet 802.3af
Includes Plastic PoE Adapater
Operating Temperature -20~75°C
-4~167°F
Humidity 15 to 95%
Misc.
Certifications CE, RoHS FCC, RoHS FCC, RoHS CE, RoHS FCC, RoHS
Warranty

Package Content
(PolePoint E200, 200, 400)
  • 12V Power Supply
  • 5dBi Maganetic-base Omni Antenna
  • Passive PoE Adapter
  • Documentation CD-ROM

Package Content
(PolePoint E200-X, 400-X)
  • Plastic PoE Adapater
  • 8dBi Omni Fiberglass Antenna
  • Mounting Kit
  • Installation Guide
  • Documentation CD-ROM
