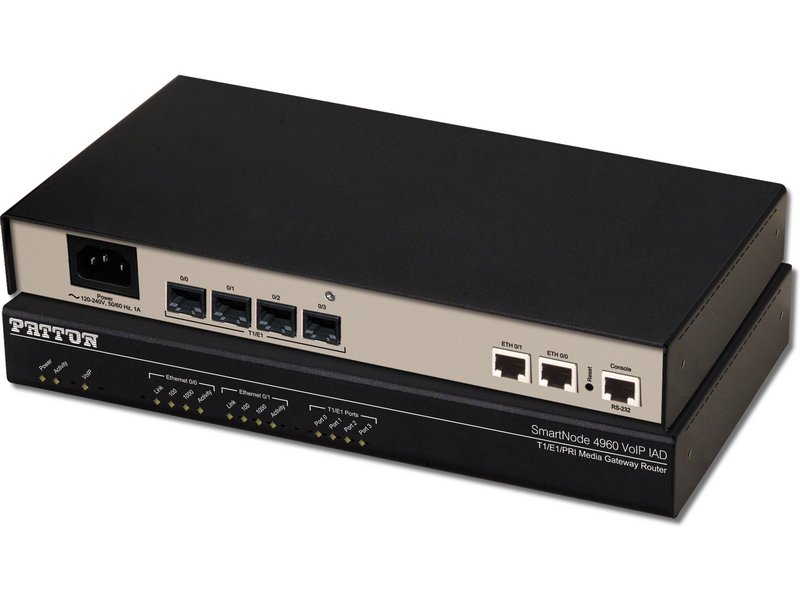

Patton SmartNode 4960 T1/E1/PRI VoIP IAD - 48 Channels

The SmartNode 4960 integrates with legacy telephony gear to deliver VoIP and data services with QoS and encrypted-voice VPNs. The SmartNode 4960 comes with four T1/E1/PRI ports, two GigE ports, and supports up to 120 simultaneous VoIP calls, making it the ideal choice for low-cost, secure, prioritized communications.

Виробник:

Код товару: # 2336

на
складі

UP DOWN

Характеристики

Providing a high-density seamless link between the circuit-switched telephone network and voice-over-IP the SN4960 is ideal for PBX business trunking or corporate VoIP access. Offering up to four software configurable T1/E1/PRI interfaces the SN4960 connects to any switch, PBX and data network with up to 120 simultaneous calls using SIP, T1, E1 or PRI signaling. The dual gigabit Ethernet ports connects to the network for the highest throughput with its integrated QoS router. With its built-in CSU/DSU, any T1/E1 port can be selected as a WAN port for a truly integrated voice and data access

Like every SmartNode, the SN4960 delivers toll-quality voice with all industry standard CODECs including low-bandwidth G.723/G.729. Business class services are supported with T.38 fax, fax bypass and modem bypass features.

The SmartNode 4960 is ready for SIP TLS and SRTP through software upgrades. Exclusive DownStreamQoS™ and Voice-over-VPN features give the clear advantage of uninterrupted and secure voice communication for any call today.



Voice Connectivity

Up to four software selectable T1/E1/PRI ports
Signaling support:

  • ISDN DSS-1, NI-2, Q.SIG
  • CAS Robbed bit loop and ground start, E&M, immediate, wink, double wink.

SIPv2 & MGCP/IUA, H.323v4
ISDN AOC/ECT
ISDN speech, audio & data (Fax Gr 4, UDI 64, RDI 64); ISDN supplementary services
Voice processing Codec G.711 a-law/mu-law, G.723, G.729ab, G.726, G.727. T.38 fax relay (9.6 k, 14.4 k)
G.711 transparent fax and bypass
Call routing and services Regular expression based call routing and number manipulation
Number blocking
Short-dialing
Digit collection, distribution and hunt groups
Data interfaces Dual 10/100/1000 TX Ethernet Ports
Autosensing
Auto-MDI
Full-duplex
IP Routing Complete IP access router
DHCP Client & server
Packet fragmentation
Static firewall, NAT, NAPT RFC 1631 access control lists
IP Quality of Service Voice priority
DownStreamQoS™
Traffic management, shaping and policing
IEEE 802.1p, TOS, DiffServ labeling
IEEE 802.1Q, VLAN tag insertion/deletion 4,096
Management Web/HTTP, CLI with local console and remote Telnet access
TFTP configuration & firmware loading
SNMP MIB II and product MIB
Secure autoprovisioning for both firmware and unit/subscriber configuration
Built-in diagnostic tools (trace, debug, call generator)
Power & Packaging Power: 100-240 VAC (50/60 Hz)
Power dissipation: 15W
Operating Environment Operating temperature: 32–104°F (0–40°C)
Operating humidity: up to 90%, non condensing
Compliance EMC compliance: EN55022 and EN55024
Safety compliance: EN 60950
CE compliance
FCC Part 15 Class A; Part 68; CS-03
