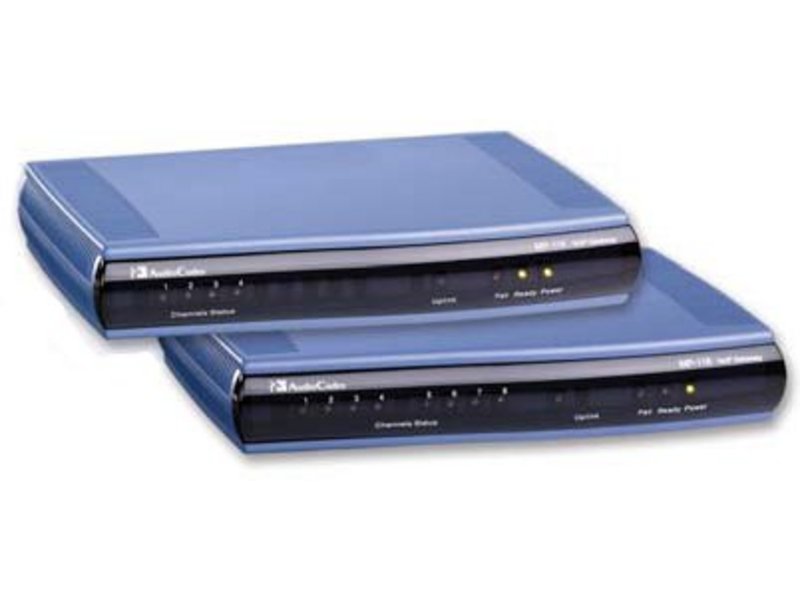

AudioCodes MediaPack MP-112 FXS MP112/2S/SIP/CER

Характеристики

The MediaPack™ Series Analog VoIP Gateways are cost-effective, bestof- breed technology products. These stand-alone analog VoIP Gateways provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP-based telephony networks, as well as for integration with new IP-based PBX systems. These products are designed and tested to be fully interoperable with leading Softswitches, SIP servers and H.323 gatekeepers.

MediaPacks are well suited for commercial VoIP deployment because of their mature and field-proven voice and fax technology. Their rich feature set allows integration with a wide range of Carriers and Enterprise network applications. MediaPack gateways are used by Carriers and Service Providers in Access networks for connecting Multi-Tenant Units (MTU), IP-Centrex subscribers, payphones and rural users over various wireless and satellite links. Enterprises use MediaPack gateways to connect their legacy PBX systems over an IP infrastructure.

In addition, in IP Centrex and central IP-PBX applications, the MediaPack increases the remote location availability and provides Stand Alone Survivability (SAS) when there is no IP connection between branch locations and the central SIP servers, SIP Proxy or central IP-PBX.

Deliver Feature-rich Solutions
MediaPacks are third generation products that have been designed to meet real market needs. In addition to superior voice technology, the products provide advanced telephony features such as long-haul, metering tones generation, country dependent MWI and CID for true integration with the existing telephony infrastructure. A variety of management and provisioning tools, such as AudioCodes’ EMS, embedded web server, Telnet and SNMP enable fast deployment and management of large and complex networks. MediaPacks are based on VolPerfect™ architecture, AudioCodes underlying, best-of-breed, core media gateway technology for all of its products.

Provide Interoperability
MediaPacks are part of AudioCodes’ complete family of stand-alone VoIP Gateways for OEM system integration. Throughout the years, AudioCodes has invested significant effort in complying with the leading and evolving VoIP standards. Support of multiple VoIP control protocols has been tested with leading Softswitch vendors. As a provider for OEMs, System Integrators and Network Equipment Providers, AudioCodes offers short time-to-market with field-proven products.

Benefit From Extensive Experience
AudioCodes, established in 1993, is one of the world’s leading providers of VoIP technology. AudioCodes’ commitment to innovation yields consistently high-quality voice processing products that are feature-rich and field-proven. AudioCodes has deployed tens of millions of VoP ports in over 100 countries to date.

MediaPack Series Features

• Spans a range of 2 to 24 analog ports
• Supports PSTN/PBX analog telephone sets or analog trunk lines (FXS/FXO)
• Selectable, multiple LBR coders per channel
• T.38 compliant
• Echo cancellation, Jitter Buffer, VAD and CNG
• Complies with MGCP, H.323 (V4) and SIP control protocols
• Enhanced capabilities which include MWI, long-haul, Metering Tones, STUN, Security features, Generation, CID and outdoor protection
• Stand Alone Survivability (SAS) for SIP based IP Centrex and Central IP-PBX applications
• Web Management for easy configuration and installation
• EMS for comprehensive management operations (FCAPS)
• Automatic povisioning via TFTP/HTTP
• Internal Access List firewall for network traffic filtering

Interfaces

Voice Ports: 2 Ports
Telephone Interfaces: FXS, RJ11
Network Interface: 10/100 BASE-TX, RJ45
Indicators: Channel status and activity LEDs

Voice, Fax, Modem

Voice over Packet Capabilities: G.168-2004 compliant Echo Cancellation, VAD, CNG, Dynamic programmable Jitter Buffer, modem detection and auto-switch to PCM
Voice Compression: G.711, G.723.1, G.726, G.729A
Fax over IP: T.38 compliant, Group 3 fax relay up to 14.4 kbps with automatic switching to PCM or ADPCM
QoS: Diffserve, TOS, 802.1 P/Q VLAN tagging
IP Transport: RTP/RTCP per IETF RFC 3550 and 3551 PPPoE, ThruPacketTM (aggregated RTP streams of several channels for saving network bandwidth)

Signaling

Signaling FXS Loop-start
In-band Signaling DTMF (TIA 464B, User-defined and call progress tones
Control MGCP (RFC 2- 05), H.323 (V4), SIP (RFC 3261)
Provisioning BootP, DHCP, TFTP and HTTP for Automatic Installation, Remote management using Web browser, EMS (Element Management System), Syslog support, RS-232 for basic configuration, Voice Menu using touch tone phone for basic configuration

Security

Media: SRTP
Control: H.235, IPSEC, TLS/SIPS
Management HTTPS, Access List, IPSEC

Physical

Power 100-240 V AC/50-60 Hz or -48V DC*
Environmental Operational: 5 to 40o C 41 to 104o F, Storage: -25 to 85o C -13 to 185o F, Humidity: 10 to 90% non-condensing
Dimensions (HxWxD): 42x172x220mm
Mounting Rack mount, Table top, Wall mount

Additional Features

Message Waiting Indication: Applying 100V DC on line for lighting bulb in handset
High Availability: PSTN Fallback: Support of PSTN fallback due to Power failure of if the IP connection is down or customer defined if IP QOS thresholds, Supported in all ports of Mixed FXS/FXO and in first port of MP-114/FXS and MP- 118/FXS using special Lifeline cable, Stand Alone Survivability (SAS): Supports SAS of up to 30 SIP users (UA) per MediaPack
Short and Long Haul: REN3: Up to 9Km (24 AWG line)
Caller ID: Bellcore GR-30-CORE Type 1 using Bell 202 FSK modulation, ETSI Type 1, NTT, Denmark, India, Brazil, British and DTMF ETSI CID (ETS 300-659-1)
Polarity Reversal / Wink: Immediate or smooth to prevent erroneous ringing
Metering Tones: 12/16 KHz sinusoidal bursts, Generation on FXS
Distinctive Ringing: By frequency (15-100 Hz) and cadence patterns
Message Waiting Indication: DC voltage generation (TIA/EIA-464-B), V23 FSK data, Stutter Dial Tone
Outdoor Protection: Over-voltage protection and surge immunity
