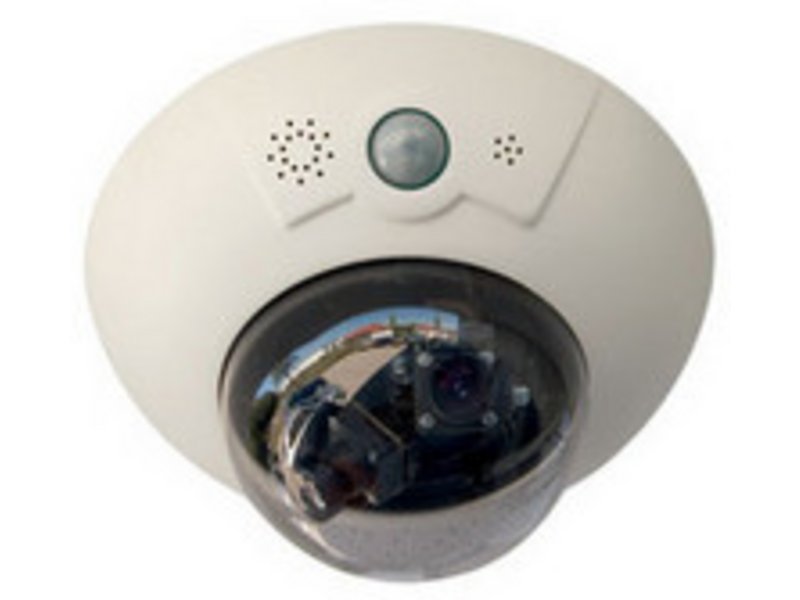

Mobotix D12Di-Sec-D22D22

With two lenses and two HiRes image sensors, the Mobotix D12 is a highly specialized security solution.

Виробник:

Код товару: # 1842

на
складі

UP DOWN

Характеристики

The MOBOTIX D12D-DualDome network camera series with its elegant design is well suited for use in interiors and on building facades that have high design requirements. The new optional wall mount provides a concealed cable guide and seals standard-RJ-45 flush-mounted power connectors. And it turns any D12D camera – which is already weatherproof (-30°C to +60°C i.e. -22 to +140°F) – into an IP65-certified camera.

The camera models in the D12D-DualDome series are equipped with two flexible, independently adjustable camera modules, which can be individually positioned in any direction. The individual models are available with different lenses. If a Super wide-angle lens is used in both camera modules, the cameras are able to reach a viewing angle of 180°.

With megapixel resolution (1280x960 pixels), integrated microphone and speaker, ISDN connection, motion detection, alarm management with pre- and post-alarms, alarm alert via telephone call, digital zoom, event-controlled recording, switching functions (1x In, 1x Out) and an RS232 interface, the D12D-DualDome cameras also include all the trusted MOBOTIX functions for convenient, professional camera use.

The lenses in the D12D camera models that are fixed with a retaining ring can be exchanged on location. The lenses in the standard models are adjusted in the factory and tested for quality so that there is generally no need to adjust the focus on location. In addition to the standard models, all the other MOBOTIX lenses can also be installed in the D12D camera models.

Warranty Information: MOBOTIX warrants its network hardware products are free of defects in materials or workmanship under normal use for a period of TWO YEARS.

Technical Specifications D12 DualDome

Models IT, IT-DNight, Sec, Sec-DNight, Sec-180°, Sec-R8
Lenses 22 to 135mm format, horizontal angle 90° to 15°
Sensitivity Color: 1 lux (t=1/60 s), 0,05 lux (t=1/1 s) B/W: 0, 1 Lux (t=1/60 s), 0,005 Luc (t=1/1 s)
2 Sensors 2 x 1/2" CMOS, progressive scan
Max. Image Resolution Color: 2048 x 1536 (3Mega), Black/White: 1280 x 960 (Mega)
Image format 2048 x 1536, 1280 x 9601024 x 768, 800 x 600,
768 x 576 (D1), 704 x 576 (TV-PAL), 640 x 480,
384 x 288, 352 x 288, 320 x 240, 160 x 120;
free image format selection (e.g. 1000 x 200 for skyline)
Max. frame rate (M-JPEG) (Live/Recording) VGA: 16 fps, TV-PAL: 12 fps, Mega: 6 fps, 3Mega: 4 fps
Max. Vido stream (MxPEG) (Live/Recording/Audio) VGA: 30 fps, TV-PAL: 24 fps, Mega: 14 fps, 3Mega: 10 fps
Image Compression MxPEG, M-JPEG, JPG, H.263 (Video-VoIP-Telephony)
Internal DVR Slot for SD card (up to 16 GB)
External Storage Directly on NAS and PC/Server without additional recording software
Software (inclusive) Video-Management-Software MxEasy, Control room software MxControlCenter
Image processing Backlight compensation, automatic white balance, image distortion correction, video sensor (motion detection)
Virtual PTZ Digital Pan/Tilt/Zoom, continuous 8x zoom
Alarm / Events Triggering of events by integrated multiple-window motion detection, external signal, temperature sensor, notification over email, FTP, IP-Telephony (VoIP, SIP), visual/acoustic alarm
Pre- and post-alarm images
Audio Integrated microphone and speaker, Line-In/Line-Out, lip-synchronous audio, two-way speaker, audio recording
Interfaces Ethernet 10/100, ISDN, USB, RS232, 1 x In, 1 x Out, Audio (Line-In/Line-Out)
Audio / Telephony VoIP, SIP, two-way speaker, remote controlling of the camera in- and outputs, event notification
Security User-/Group management, HTTPS/SSL, IP address filter, IEEE 802.1x, Intrusion Detection
Certificates BGV C9 (“UVV”), EMV (living environments, industry), EN 50155 (shock, vibration, temperature), CE, FCC
Power Supply Year-round Power over Ethernet (IEE 802.3af; Class 0), Netpower-Adapter, typ. 4 W
Operating conditions IP65 (DIN EN 60529), -30° bis +60 °C (-22°F to +140°F)
Dimensions x H: 20,1 x 11 cm, Weight: ca. 650 g
Standard Delivery Housing (high-resistance composites - PBT-PC), white, 2 x shockproof polycarbonate dome (transparent), free choice of 2 lens modules, mounting parts, allen wrench, patch cable, manual, software



Indoor/Outdoor:
Dual lens indoor (IP54), -30°..+60°C, outdoor (IP65) when used with wall mount

Lenses: (eq. 35mm)
Super Wide Angle (22mm,90°,F2.0)
Wide Angle (32mm, 43mm)
Tele (65mm, 135mm)

Resolution:
3MEGA (2048x1536 pixels), color

Zoom/Pan:
Continuous up to 8x Zoom & Pan/Tilt (digital)

Frame Rate (Mono):
30 fps VGA • 30 fps CIF
10 fps MEGA

Sensitivity:
1 lux (t=1/60s) • 0.05 lux (t=1/1s)

Interfaces:
ISDN, Ethernet 10/100 Mbit, RS232

Internal DVR:
Up to 16 GB with SD card

Audio/Telephony:
Bidirectional, IP telephony (VoIP), ISDN telephony

Power Supply In/Out:
PoE or MX30V • 1xIN, 1xOUT

Software Features:
FTP, E-Mail, video alarm management, video motion, Multiview, event search

Arming • Triggering:
365-day schedule • multiple events

External Storage:
Up to 1 TB on PC/Server/NAS

Order No.:
D12Di-Sec-D22D22
