Aastra 480i

Характеристики

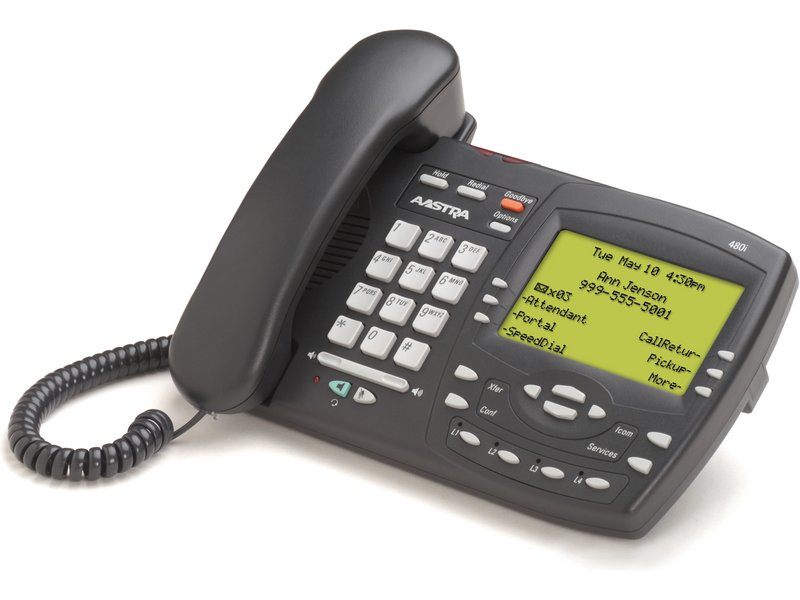

The Model 480i is an advanced, fully featured, IP screen Telephone that provides a flexible IP solution designed with interoperability and ease of use in mind.

Key Features:

• Large display — Eight-line backlit screen with six context sensitive softkeys provides more information and flexibility in call handling
• Enhanced Call Management — Large storage for personal directory, callers log, and redial list
• Tight Integration — Support for Sphericall MGCP and multiple SIP IP telephony systems including BroadWorks®, Nortel, Sylantro and Asterisk
• Multiple Line/Call Appearance Lights — Support up to 9 simultaneous calls. Juggle multiple calls easily with a single press of a button
• Shared Call Appearances — Shared calls allow you to place a call on hold at one set and pick it up easily at another set
• Remarkable Audio — Quality speakerphone with excellent voice clarity and delivery
• Protect Your Investments — Firmware upgrades can be downloaded and installed in the field as standards develop and protocols evolve
• Less Wiring — Built in dual 10/100 switched Ethernet ports let you share a connection with your computer. Inline power support eliminates power adapters

Feature Highlights*
» Up to 9 call appearance lines
» Personal directory
» Call forward
» Call transfer
» Call waiting
» Caller and calling line information
» Callers log
» Conference
» Hold
» Redial list
» Live dial pad or pre-dial support
» Asterisk PBX - support Call Park/Pickup, BLF, Priority Alerting
» Broadsoft’s BroadWorks enhanced SIP – support for Shared Call Appearances, CommPilot Call Manager, BLF, Priority Alerting
» Nortel’s MCS 5100/5200 SIP support – Conferencing, Voicemail, and NAT Traversal support
» Sphere's Sphericall SIP/MGCP support - BLF, Intercom
» Sylantro SIP – Supports Comcierge, Call Park/Pickup, Conference, BLA, Distinctive Ringing

* The Aastra 480i CT, 480i, 9133i and 9112i IP Phones were verified as compatible with Nortel Networks Multimedia Communications Server 5100 and 5200 in a controlled laboratory environment.

Physical
» 2 position desk stand
» 24.9 cm W x 14.7 cm D x 11.5cm D (9.8''W x 5.8''D x 4.5''H)
» 850 g (30.0 oz.)
Power
» Compatible with IEEE 802.3af inline power device
» Optional Power Over Ethernet (POE) injector available, but not provided, for networks that do not supply power
Handset / Headset
» Modular headset connector, non-amplified business headsets recommended
» Hearing aid compatible handset
» Full duplex speakerphone
Display
» 3.5'' x 2.25'', 8 line, backlit display
Feature Keys
» 4 call appearance lines
» 4 navigational keys
» 6 customizable softkeys; programmable up to 20 functions.
» 8 predefined hard keys for most common call handling functions including Call Transfer, Conference, Intercom, Hold, Redial, Mute
Networking
» Dual 10/100 Mbps switched Ethernet ports
» Manual or Dynamic Host Configuration Protocol (DHCP) IP address setup
» Time and date synchronization using SNTP
» Built-in HTTP server for web administration and maintenance
» Server provisioned user configuration files
» XML browser
Protocols / Codecs
» IETF SIP (RFC3261)
» IETF MGCP (RFC3435)
» G.711 ?-law / A-law
» G.729
Package Contents
» 480i IP Telephone
» Desk Stand
» Quick Installation Guide
» Network Cable
