Grandstream GXV-3501

Grandstream GXV3501 IP Video Encoder can be managed with GSurf, Grandstream's intuitive video management software that controls up to 36 cameras simultaneously.


Код товару: # 2556

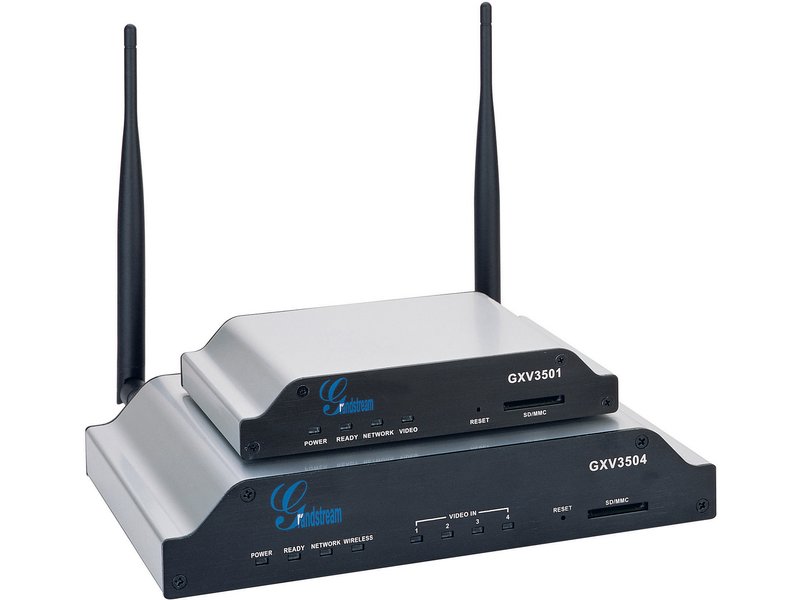

Grandstream GXV3501 IP Video Encoder - 1 Channel

The GXV3501 is a next generation IP video server/encoder with powerful innovations. It packs a number of cutting-edge technologies including H.264 real time video compression (D1 resolution) with sharp image clarity at low-to-modest bandwidth, industry leading SIP/VoIP for full duplex 2-way audio and video streaming to mobile phones and video phones, PoE, embedded analytics, large pre-/post-event recording buffer, and advanced security protection. Its unique incorporation of the most comprehensive peripheral support for alarm control, local storage expansion, and wireless network connection, creates sophisticated and best-in-class control flexibility and scalability.

The GXV3501 can be managed with GSurf, Grandstream's intuitive video management software that controls up to 36 cameras simultaneously. The GXV3501 offers an excellent solution for IP enabling of traditional analog cameras for professional surveillance environments

GXV3501 Feature Highlights:

  • Advanced multi-streaming-rate real-time H.264, Motion JPEG at D1 resolution
  • 1 or 4 Analog video inputs (BNC) and 1 or 4 alarm input & outputs
  • Audio input and output, RS485/232, PTZ control
  • 24MB pre-/post-event recording buffer per port
  • USB 2.0 port and SD slot for storage/wireless network card
  • Integrated Power-over-Ethernet (802.3af), optional antenna for wireless network
  • Embedded video analytics including motion (up to 16 target areas) & video loss detection
  • SIP/VoIP support for two-way audio communications and video streaming to mobile phones and video phones
  • Built-in high performance streaming server to allow up to 12 simultaneous D1 viewers or 25 CIF viewers.


Video Compression:
H.264 BP @ Level 3.0, JPEG, Motion JPEG

Max Video Resolution:
Full D1: 720 x 576 (PAL), 720 x 480 (NTSC)

Max Frame Rate in Max Video Resolution
30fps / 25fps at D1 (NTSC/PAL)

Video Bit Rate
32 Kbps - 2Mbps

Video Input
1 (BNC, voltage 1.0Vp-p, resistance 75 ohm)

Audio Input
3.5mm LINE-IN

Audio Output
3.5mm LINE-OUT

Audio Compression
G.711, G.726

Alarm Input

Alarm Output
1(125VAC/0.5A, 30VAC/2A)

PTZ Control

Serial Ports

Embedded Analytics
Motion Detection (up to 16 target areas), video loss (pending)

Pre-/post Alarm Buffer

Trigger upon events, send via email / FTP

Multi-streaming-rate for Preview and Recording

Video watermark, HTTPS, password

Power over Ethernet (PoE)
Standard, IEEE 802.3af Class 3

Peripheral Ports
SD 2.0, USB Host 2.0

Wi-Fi (802.11b/g)

SIP/VoIP Support

Dimensions (L x W x H)
159mm x 108mm x 32mm


Temperature / Humidity
-10ºC - +55ºC (14ºF - 131ºF), Humidity 10-90% RH (non-condensing)

Output: 12VDC/1.0A; Input: 100-240VAC, 50-60Hz

FCC Part 15, Subpart B Class B
EN 55022 Class B, EN 6100-3-2
EN61000-3-3, EN 55024, EN 60950-1
C-tick AS/NZS CISPR 22, CISPR 24.
