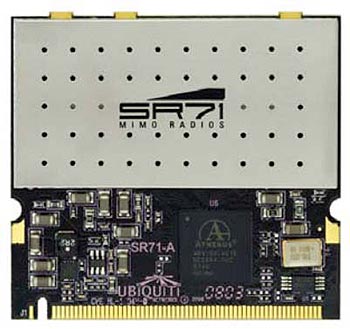

Ubiquiti Networks SuperRange71-5The World's First 802.11a/n 5GHz Hi-Power mini-PCI Radio. Optimized for Hi-Speed Outdoor Backhaul Links.
| Features: | |
| Processor Specs | Atheros AR9160 with DFS SUPPORT |
| Radio Operation | IEEE 802.11a/n |
| Interface | 32-bit mini-PCI Type IIIA |
| Operation Voltage | 3.3VDC |
| Antenna Ports | (2) MMCX for 2x2 MIMO Operation |
| Temperature Range | -20C to +70C (extended temp version up to +95c) |
| Security | 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data Rates | up to 300Mbps |
| TX Channel Width Support | 20MHz / 40MHz |
| RoHS Compliance | Yes |
| Average TX Power | 27dBm, +/-2dB |
| Max Current Consumption | 1.25A, +/-100mA |
| Indoor Range (Antenna Dependent) | over 150 meters |
| Outdoor Range (Antenna Dependent) | over 50km |
| Operating System Support | Linux |
