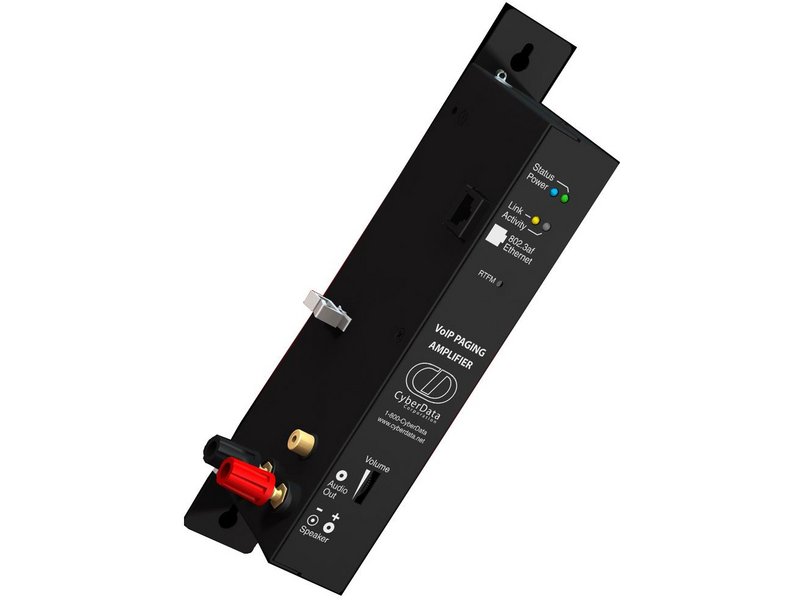

CyberData VoIP Paging Amplifier

Характеристики

The CyberData SIP-enabled VoIP Paging Amplifier provides an easy method for implementing an IP-based overhead paging system for both new and legacy installations. The CyberData Paging Amplifier provides direct drive of a standard Horn speaker and supports a line out connector for connection to an external amplifier.

The interface is compatible with most SIP-based IP PBX servers that comply with the SIP RFC 3261. For non-SIP environments, the Paging Amplifier can be configured to listen to multicast address and port number combinations to form paging zones.

CyberData VoIP Paging Amplifies features:

• SIP (RFC 3261) compatible
• Dual-speed ethernet 10/100 Mbps
• Web-based configuration
• Web-based firmware upgradeable
• PoE 802.3af enabled
• IGMP
• Line-out connector
• Direct speaker drive

Ethernet I/F	10/100 Mpbs
Power Input	PoE 802.3af or 110-230VAC PS
Protocol	SIP RFC 3261
Payload Types	G711
Regulatory Compliance	FCC Class B, UL 60950, CE
Warranty	2 Years Limited
Dimensions	1.26" x 9.45" x 3.13"
Part Number	010965
Output	- With one 8-ohm speaker, up to 8 watts output - With external PoE power injector (Part #010867) and one 8 ohm speaker, up to 10 watts output - With external PoE power injector (Part #010867) and two 8 ohm speakers in parallel, up to 20 watts output.

Lineout:

Output Signal Amplitudes    : 2.0VPP maximum
Output Level                       : + 2dBm nominal
Total Harmonic Distortion    : 0.5% maximum
