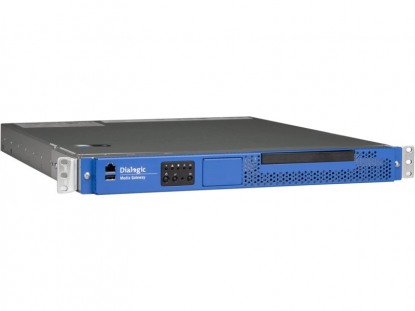

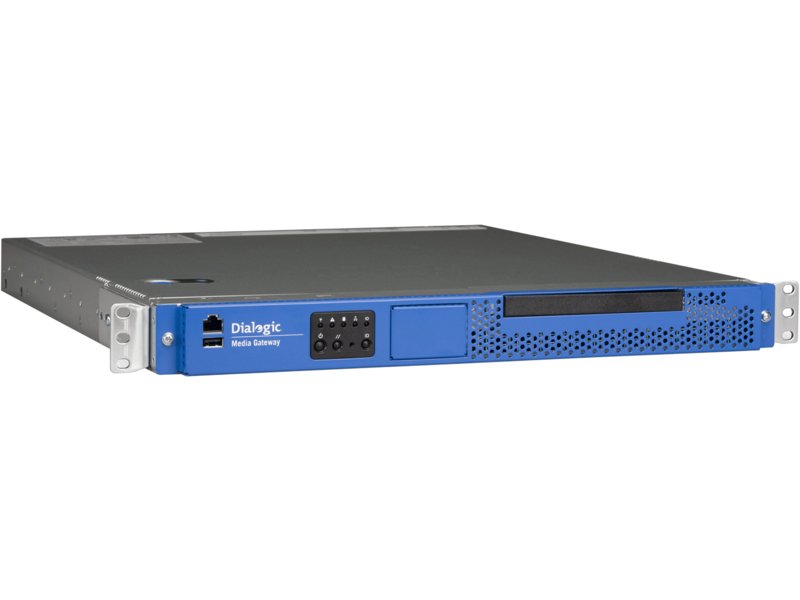

Dialogic Gateway DMG4120DTI - Quad T1 / E1

The DMG4120DTI is a “hybrid gateways” designed for the Office Communications Server 2007 role of Mediation Server, which is Microsoft’s technology providing PSTN and PBX interoperability, high-fidelity VoIP, and security.

Виробник:

Код товару: # 2303

на
складі

Характеристики

The Dialogic® 4000 Media Gateway Series (DMG4000 Gateways) is a set of integrated systems designed to connect Microsoft® Office Communications Server 2007 to existing PBX systems and PSTN networks. Based on a standard rack-mount server running the Windows® Server 2003 R2 operating system, the DMG4000 Gateways are basic hybrid media gateways designed for the Office Communications Server 2007 and therefore include the role of Mediation Server, which is Microsoft’s technology providing PSTN and PBX interoperability, high-fidelity VoIP, and security.

The DMG4000 Gateways have a familiar user interface, which minimizes Total Cost of Ownership (TCO) by reducing the need for operational and administrative training and special maintenance. In addition, the DMG4000 Gateways keep the number of devices needed to support Office Communications Server 2007 to a minimum by integrating the Mediation Server into a gateway, reducing hardware maintenance.

The DMG4000 Gateways contain field-proven Dialogic® Diva® boards and Dialogic® Diva® SIPcontrol™ Software in addition to Mediation Server software. These elements are integrated in a rugged, compact 1U Intel IP Network Server NSW1U, which features a high-performance 64-bit Dual-Core Intel Xeon processor 5100 series, resulting in a system that can be installed easily in a standard data center rack. The DMG4000 Gateways also offer dual Gigabit Ethernet interfaces for IP network connection, as well as a choice of two or four T1/E1 interfaces to the PSTN or PBX. They can be configured to support up to 120 channels of unified communications traffic between legacy networks and an IP network hosting Office Communications Server 2007.

Features & Benefits:

Validated by Microsoft as an interconnect between legacy PBXs or the PSTN and the Office Communications Server 2007
Enables unified communications features for a circuit-switched telephony network

Available as a 1U rack mount integrated system supporting configurations of 48/60 channels (T1/E1) or 96/120 channels (T1/E1)
Offers a range of product densities for businesses of various sizes

Hosts co-located Mediation Server, an element of the Office Communications Server 2007 solution
Reduces the number of servers needed for a unified communications solution and minimizes administrative effort, resulting in lower TCO

Compatible with the equipment of popular PBX manufacturers, including Aastra, Alcatel-Lucent, Avaya, Ericsson, Matra, Nortel, and Siemens
Protects investment in legacy telecommunications equipment and allows a phased migration to IP

Includes redundant power supply, Raid-1 hard disk subsystem, and a failover and load balancing Ethernet network connection
Provides high availability

Supports supplementary services on ETSI-DSS1, QSIG, and other TDM protocols
Brings important supplementary services, such as call transfer, call hold, MWI, and call party information, to an IP environment

Supports T.30 Fax Group 3 up to 33.6 kbps (depending on installed license) using T.38 real-time FoIP
Offers a range of fax configurations to address demands regarding fax channel density and fax transmission speed

Dialogic Product Order Code
DMG4060DTI Media Gateway 306-313
DMG4120DTI Media Gateway 306-314



Ports per unit
Dialogic® DMG4060DTI Media Gateway: 2-port T1/E1 (48/60 channels)
Dialogic® DMG4120DTI Media Gateway: 4-port T1/E1 (96/120 channels)

Network interface
2 x 10/100/1000 BaseT Ethernet LAN port with load balancing

Protocol support
- E1 ISDN: ETSI-DSS1 (EuroISDN), INS-1500 (Japan), QSIG
- E1 CAS: MFR2
- T1 ISDN: NI-1, 4ESS, 5ESS, DMS100, QSIG
- T1 CAS: RBS

VoIP call control
- Session Initiation Protocol (SIP), RFC 3261
- Configurable transport layer for SIP, UDP, and TCP
- Session Description Protocol (SDP), RFC 2327
- NOTIFY (RFC 3265), REFER (RFC 3515), 302 REDIRECT, DIVERSION HEADER
- Basic call with far-end and near-end disconnect
- Microsoft® SIP extensions, compatible with both Microsoft® Exchange UM and
- Microsoft® Office Communications Server 2007

Supplementary services
- Numbering services (abstracted as Called Party Number, Calling Party Number/CLIP, and Redirecting Number)
- Call hold/retrieve
- Call diversion
- Unattended, blind transfer
- Attended transfer with consultation call
- Message waiting activation/deactivation

FoIP services (depending on installed Fax license)
- Default: 12 channel of V.17 fax (14.4 kbps)
- Optional: Up to 120 channel of V.34 fax (33.6 kbps)
- T.30 Fax Group 3 up to 33.6 kbps using T.38 real-time FoIP
- Fax compression MH, MR, MMR
- Error Correction Mode (ECM)
- Clear Channel Fax

Tone processing features
- DTMF generation and recognition (in-band)
- DTMF relay, RFC 2833

Media streaming
- IP Real-time Transport Protocol (RTP)
- RTP dynamic payload audio/telephony event
- RTP profile name RTP/AVP
- TDM-side fax tone detection via RTP event (RFC 2833)
- Echo canceller with up to 256 ms echo tail
- G.711 coder, 64 kbps (64 kbps, A-law, ?-law)

Physical dimensions
Height: 1.70 in. (4.32 cm)
Width: 16.93 in. (43.0 cm)
Length: 20.0 in. (50.8 cm)

Power supply
- 90 VAC to 264 VAC
- 450 W
- Power Factor Corrected (EN61000-3-2)
- Two (2) redundant power supplies included

Mediation Server
- Globally Routable User Agents URI
- SIP over mutual TLS
- SRTP on Communications Server
- RT Audio on Communications Server
- Interactive Connectivity Establishment (ICE) support
