Общение лицом к лицу становится реальностью
Важным компонентом системы унифицированных
коммуникаций Cisco Unified Communications является персональный

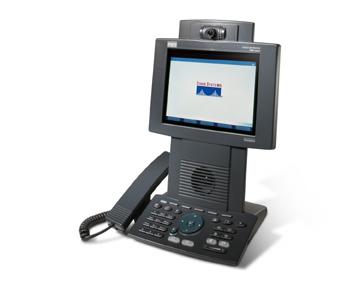

настольный видеотелефон Cisco Unified 7985G, который делает возможным
мгновенное общение лицом к лицу как для руководителей, так и для
обычных менеджеров компании. Эта модель объединяет все необходимые
компоненты для осуществления видеовызова - камеру, ЖК-дисплей, динамик,
кнопочную панель и трубку - в виде одного удобного в эксплуатации
устройства. Доступ к объединенным возможностям IP-телефонии и
IP-видеотелефонии предоставляется пользователям с использованием
унифицированного плана нумерации и общего каталога - в рамках единой
инфраструктуры унифицированных коммуникаций Cisco Unified
Communications - с помощью Cisco Unified CallManager.
Помимо прочего, IP-телефон Cisco Unified 7985G предлагает:
- Целый ряд функций телефонии, таких как переадресация вызова,
перевод вызова, конференц-связь и удержание вызова (теперь все эти
функции доступны в рамках видеотелефонии)
- Целый ряд методов определения доступности абонента, базирующихся на предпочтениях пользователей
- Прямой доступ к каталогам, услугам, настройкам и сообщениям голосовой почты с IP-телефона
- Специальные кнопки для работы с видеофункциями: Самопоказ (Self
View), Картинка в картинке (Picture in Picture), Отключение видео
(Video Mute), Дисплей (Display) и Яркость (Brightness)
Features
The
Cisco Unified IP Phone 7985G is a dynamic device designed to grow with
your system capabilities. Call features such as call forwarding,
transfer, conferencing, and hold are now available with video and are
all initiated through the IP phone. Using Cisco Unified Communications
Manager, IP telephony and IP video telephony are delivered to every
employee using a unified dial plan and a common directory, over a
single Cisco Unified Communications solution infrastructure.
Through
software updates to the phone flash memory, features keep pace with
changes. No manual configuration of the phone is required when the user
changes location; the user simply picks up the phone and moves to the
new location anywhere on the network. The Cisco Unified IP Phone 7985G
provides many access methods according to user preference. In addition
to the Messages, Directories, Settings, and Services buttons, the Cisco
Unified IP Phone 7985G has five buttons to control display features.
Table 1 lists the features of the Cisco Unified IP Phone 7985G.
Table 1. Features of Cisco Unified IP Phone 7985G
|
Feature
|
Description
|
|
Messages button
|
The phone offers direct access to voicemail.
|
|
Directories button
|
The
phone identifies incoming messages and categorizes them on the screen,
allowing users to quickly and effectively return calls using the
direct-dial-back capability. The corporate directory integrates with
the Lightweight Directory Access Protocol Version 3 (LDAP3) standard
directory.
|
|
Settings button
|
The
Settings button allows users to adjust the display contrast, select
background images (if available), and select from a large number of
unique ring sounds through the User Preferences menu. Network
configuration preferences also can be set (usually by the system
administrator). Configuration can be either automatically or manually
set up for Dynamic Host Configuration Protocol (DHCP), Trivial File
Transfer Protocol (TFTP), Cisco Unified Communications Manager, and
backup Cisco Unified Communications Managers.
|
|
Services button
|
The
Cisco Unified IP Phone 7985G allows users to quickly access diverse
information such as weather, stocks, quote of the day, or any Web-based
information using Extensible Markup Language (XML) to provide a portal
to an ever-growing world of applications, features, and information.
Note: Services are not currently active; users will see the message "The Key is not active" when they press the Services button.
|
|
Help
|
The online Help feature gives users information about the phone keys, buttons, and features.
|
|
Speakerphone, Mute, and Headset buttons
|
The
phone features high-quality, speakerphone technology, including an
easy-to-use speaker On/Off button, Microphone Mute button, and Headset
button. These buttons are lighted when active.
|
|
Ethernet switch
|
The
internal Cisco 2-port Ethernet switch allows a direct connection to a
10/100BASE-T Ethernet network through an RJ-45 interface with
single-LAN connectivity for both the phone and a co-located PC. The
system administrator can designate separate VLANs (802.1Q) for the PC
and Cisco Unified IP Phones, providing improved security and
reliability of voice and data traffic.
|
|
Headset port
|
A
dedicated headset port eliminates the need for a separate amplifier
when using a headset. This feature allows the handset to remain in its
cradle, simplifying headset use.
|
|
Volume control
|
The
convenient volume control on the phone allows easy decibel-level
adjustments for the speakerphone, handset, headset, and ringer.
|
|
Self-View button
|
The
Self-View button switches the video image from incoming to outgoing
video. The Self-View button displays your outgoing picture in
full-screen mode, allowing you to see what you are transmitting.
|
|
Picture-in-Picture (PIP) button
|
The
PIP button displays a smaller picture of the outgoing video. The PIP
display appears on top of the larger incoming picture when users are on
a call, allowing them to see both pictures at the same time.
|
|
Video Mute button
|
This
button toggles the Video Mute feature on or off. When video mute is
active, the videophone does not send out the user's video image. The
far-end video phone displays a muted-video icon to indicate that the
near-end user has enabled video mute.
|
|
Display button
|
The
Display button toggles the menu on and off. With this button, all the
information displayed on the phone screen, including soft-key labels,
lines, and call information, can essentially be removed and the video
image set for full-screen view.
|
|
Brightness button
|
This button controls monitor brightness.
|
|
Flexible power options
|
The
Cisco Unified IP Phone 7985G can receive power down the LAN from any
Cisco IEEE 803.3af Power-over-Ethernet (PoE) switch. It also can be
powered locally with a power supply (part number CP-PWR-CUBE-3).
|
|
Multiple ring tones
|
More than five user-adjustable ring tones are available.
|
|
American Disabilities Act (ADA) features
|
A
handset that meets Hearing Aid Compatibility (HAC) Act requirements is
available; the handset also meets HAC requirements for magnetic
coupling to approved HAC hearing aids. The dial pad also is ADA
compliant.
|
|
Signaling protocol support
|
The phone offers Skinny Client Control Protocol (SCCP) support.
|
|
Codec support
|
G.711, G.729ab, and G722 audio compression codecs are available.
|
|
Configuration options
|
IP address assignment can be configured statically or through DHCP.
|
|
Voice quality
|
Comfort-noise generation and voice-activity detection (VAD) programming are performed on a system basis.
|
Video Specifications
Table 2 lists the video specifications of the Cisco Unified IP Phone 7985G.
Table 2. Video Specifications of Cisco Unified IP Phone 7985G
|
Specification
|
Description
|
|
Performance
|
Up to 768 kbps IP
|
|
Video standards
|
H.261, H.263, H.263+, and H.264
|
|
Frame rates
|
• 30 frames per second (fps) using H.263 when using 256 kbps (or more) for video
• 30 fps using H.264 when using 128 kbps (or more) for video
|
|
Native National Television Standards Committee (NTSC) standards
|
• 4SIF (704 x 480 pixels); receive only
• SIF (352 x 240 pixels)
|
|
Native Phase Alternating Line (PAL) standards
|
• 4CIF (704 x 576 pixels); digital clarity
• QCIF (176 x 144 pixels)
• SQCIF (128 x 96 pixels)
|
|
Native PC receive resolutions
|
• XGA (1024 x 768 pixels)
• SVGA (800 x 600 pixels)
• VGA (640 x 480 pixels)
|
|
Audio standards
|
G.711, G.722, and G.729AB
|
|
Audio features
|
• Echo cancellation
• Automatic gain control (AGC)
• Automatic noise reduction
|
|
Camera
|
• One-fourth-inch charge-coupled device (CCD)
• +10 to -10° degrees tilt
• 32° vertical field of view
• 36° total vertical field of view
• 45° horizontal field of view
• 48° total horizontal field of view
• 460 (PAL) or 470 (NTSC) TV lines
•
Minimum illumination 1.1 Lux (video output 50%, AGC on, and standard
lens) and Reference 0.4 Lux (video output 50%, AGC on, and F1.4)
• Manual focus
• Automatic white balance
|
Specifications
Table 3 lists other specifications of the Cisco Unified IP Phone 7985G.
Table 3. Specifications of Cisco Unified IP Phone 7985G
|
Specification
|
Description
|
|
Firmware upgrades
|
Downloadable from Cisco Unified Communications Manager and Cisco.com
|
|
Dimensions (H x W x D)
|
13.6 x 9 x 8 in. (34.6 x 23 x 20.4 cm)
|
|
Footprint
|
6.68 x 7.3 in. (17 x 18.5 cm)
|
|
Weight
|
3.3 lb (1.5 kg)
|
|
Network features
|
Intelligent Packet Loss Recovery (IPLR)
|
|
Network interface
|
• 1 LAN and Ethernet (RJ-45); 10 or 100 Mb
• Internal 2-Port Ethernet Switch
• PoE (IEEE 802.3af)
|
|
Ethernet, Internet, and intranet connectivity
|
Cisco Discovery Protocol, 802.1p/q, TCP/IP, DHCP, Address Resolution Protocol (ARP), TFTP, Telnet, and XML
|
Temperature
Table 4 lists temperature ratings for the Cisco Unified IP Phone 7985G.
Table 4. Temperature Ratings for Cisco Unified IP Phone 7985G
|
Temperature
|
Description
|
|
Operating temperature
|
32 to 104°F (0 to 40°C)
|
|
Relative humidity
|
10 to 95% (noncondensing)
|
|
Storage temperature
|
14 to 140°F (-10 to 60°C)
|
Certifications
Table 5 provides certification information for the Cisco Unified IP Phone 7985G.
Table 5. Certification Information for Cisco Unified IP Phone 7985G
|
Specification
|
Description
|
|
Safety
|
• UL 60950
• CAN/CSA-C22.2 No. 60950
• EN 60950
• IEC 60950
• ACA TS 001
• AS/NZS 60950
|
|
EMC
|
• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR22 Class B
• VCCI Class B
• EN55024
• EN50082-1
• EN61000-3-2
• EN61000-3-3
• EN-61000-6-1
|
|
Telecom
|
• USA- FCC Part 68 (47CFR) (HAC)
• Canada-CS-03
• Australia-as/ACIF S004, AS/ACIF S040
• New Zealand- PTC 220 Draft
• Singapore- IDA RS-IP-CSN-intc/ITU P.310
|
Ordering Information
Table 6 provides ordering information for the Cisco Unified IP Phone7985G.
Note:
Two versions of the phone hardware are available for ordering,
depending on the power frequency adopted in the country where the phone
is to be deployed. For use in countries with 50-Hz power frequency, you
should order the PAL version of the product; for use in countries with
60-Hz power frequency, you should order the NTSC version of the
product. Check the power frequency and video broadcasting standard used
in the country before ordering. Also, include the appropriate power
cord (Table 7).
Table 6. Ordering Information for Cisco Unified IP Phone 7985G
|
Product Number
|
Product Description
|
|
CP-7985-NTSC
|
Cisco Unified IP Phone 7985G (NTSC)
|
|
CP-7985-PAL
|
Cisco Unified IP Phone 7985G (PAL)
|
|
SW-CCM-UL-7985
|
Station user license, Cisco Unified IP Phone 7980 series
|
|
CP-7985-NTSC-CH1
|
Cisco Unified IP Phone 7985G for NTSC channels with 1 user license
|
|
CP-7985-PAL-CH1
|
Cisco Unified IP Phone 7985G for PAL channels with 1 user license
|
|
CP-7985-NTSC=
|
Cisco Unified IP Phone 7985G NTSC, spare
|
|
CP-7985-PAL=
|
Cisco Unified IP Phone 7985G PAL, spare
|
|
SW-CCM-UL-7985=
|
Station user license, Cisco Unified IP Phone 7980 series, spare
|
|
CP-PWR-CUBE-3
|
Power
adapter for Cisco Unified IP Phone 7970G is utilized for the Cisco
Unified IP Phone 7985G. Refer to the Table 7, "AC Country Power Cords,"
to select the correct regional power cord.
|
Power Cords
Table 7. AC Country Power Cords
|
Product Number
|
Description
|
|
CP-PWR-CORD-AP=
|
Singapore
|
|
CP-PWR-CORD-AR=
|
Argentina
|
|
CP-PWR-CORD-AU=
|
Australia
|
|
CP-PWR-CORD-CE=
|
European Community
|
|
CP-PWR-CORD-JP=
|
Japan
|
|
CP-PWR-CORD-NA=
|
North America
|
|
|
