Характеристики

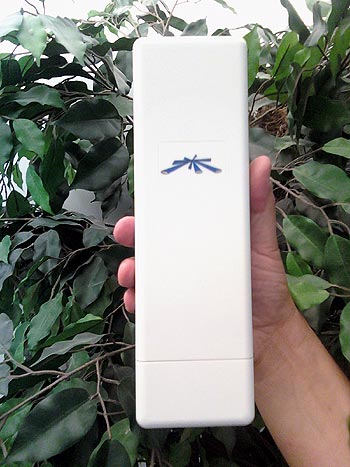

Ubiquiti Networks NanoStation5 (NS5)The Ultimate 5GHz CPE for the Global WISP Community Featuring Adaptive Antenna Polarity (AAP) Technology
The device designed to advance the Global Wireless ISP industry to the next level. Featuring a compact indoor/outdoor design and an interface so intuitive even the most technically challenged can instantly become experts. But, don't be fooled; it is as powerful as it is simple. Nanostation packs some phenomenal performance with a revolutionary design combining a hi-gain 4 antenna system, advanced radio architecture, and highly researched and developed firmware technology allowing throughput, stability, and capacity performance rivaling even the highest-end WiMax networks.
Are you a WISP running Sputnik?
Download Sputnik Agent Firmware to run on the Ubiquiti NS2 and NS5 Radios. Sputnik Agent firmware is available for the Ubiquiti access points, including those listed below. Please note the name and version number of the firmware for your AP before proceeding.
Important note: All of the firmware available for download from Sputnik's web site has the Sputnik Agent enabled by default, even after factory reset. Sputnik-powered firmware downloaded from other sources, such as www.dd-wrt.com and www.nexaira.com, doesn't. The network address, username and password of the local web control panel can change after reflash. Please see below for details.
| Features: | |
| Processor Specs | Atheros AR2313 SOC, MIPS 4KC, 180MHz |
| Memory Information | 16MB SDRAM, 4MB Flash |
| Networking Interface | 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface |
| Wireless Approvals | FCC Part 15.247, IC RS210 |
| RoHS Compliance | Yes |
| TX Power | 24dBm, +/-2dB |
| RX Sensitivity | -94dBm +/-2dB |
| Antenna | Integrated 14dBi Dual Pol + External SMA |
| Outdoor Range (BaseStation Antenna Dependent) | over 10km |
| TCP/IP Throughput | 25Mbps+ |
| Max Power Consumption | 6 Watts |
| Power Supply | 12V, 1A (12 Watts). Supply and injector included |
| Power Method | Passive Power over Ethernet (pairs 4,5+; 7,8 return) |
| Operating Temperature | -40C to +85C (System PCB optimized for hi-temp) |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Weight | 0.4 kg |
