SuperRange 9

SuperRange 9; 900 MHz Mini-PCI module.

Виробник:

Код товару: # 1523

на
складі

Характеристики

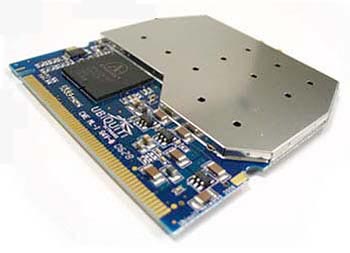

Ubiquiti Networks SuperRange9

Featuring Ubiquiti Patent Pending Frequency Freedom Technology.
Seamless Compatibility with Atheros 802.11 Linux Drivers.

With up to 700mW of output power, 54Mbps data rates, -93dBm of receive sensitivity performance, and advanced noise immunity functionality; the SuperRange9 mini-PCI radio redefines the term "Non Line of Sight." The radio is complimented with FCC Part 15.247 Modular Approval and an advanced software feature set courtesy of Atheros 802.11 MAC/BB technology. The result is the most powerful and full-featured 900 MHz wireless solution on the planet!
For improved range and increased user capacity, the SuperRange9 is capable of supporting 5/10/20 MHz transmission bandwidth in the 900-928MHz unlicensed band.


Features:
Radio Operation Proprietary 900MHz based on 802.11b/g CCK/OFDM
Interface 32-bit mini-PCI Type IIIA
Operation Voltage 3.3VDC
Antenna Ports Dual u.fl (Primary only required; secondary optional for diversity)
Temperature Range -20C to +70C
Security 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates 1Mbps-11Mbps (802.11b), 6-54Mbps (802.11g)
RoHS Compliance Yes
Average TX Power 28dBm, +/-1.5dB
Max Current Consumption 1.20A, +/-100mA
Indoor Range (Antenna Dependent) over 100 meters
Outdoor Range (Antenna Dependent) over 1km
Operating System Support Linux MADWIFI, WindowsXP, Windows2000
Advanced Mobility / Quick Handoff WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Cisco Support CCX 4.0 Supported Driver/Utility also available from Ubiquiti
