Характеристики

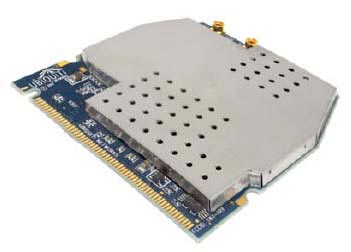

Ubiquiti Networks XtremeRange9Rock-Solid 900MHz Long-Range Performance. Featuring Ubiquiti's 2nd Gen Frequency Freedom Technology.
Introducing the first carrier class modular radio for the 900MHz unlicensed band. The XR9 utilizes an advanced noise immunity radio architecture developed by Ubiquiti RF engineers through their customer interactions and field testing over the past two years.
The XR9 enables links at speeds and distances never before seen in a 900MHz radio and is designed to operate in the harshest of environmental and noise conditions where other 900MHz have solutions failed. XR9 is not compatible with SR9.
| Features: | |
| Processor Specs | Atheros, 6th Generation, AR5414 |
| Radio Operation | Proprietary 900MHz |
| Interface | 32-bit mini-PCI Type IIIA |
| Operation Voltage | 3.3VDC |
| Antenna Ports | Dual MMCX |
| Temperature Range | -45C to +90C (extended temp version up to +95C) |
| Security | 802.11i, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP |
| Data Rates | 6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps |
| TX Channel Width Support | 5MHz / 10MHz / 20MHz / 40MHz |
| RoHS Compliance | Yes |
| Average TX Power | 28dBm, +/-1dB |
| Max Current Consumption | 1.10A, +/-100mA |
| Indoor Range (Antenna Dependent) | over 400 meters |
| Outdoor Range (Antenna Dependent) | over 50km |
| Operating System Support | Linux MADWIFI, WindowsXP, Windows2000 |
| Advanced Mobility / Quick Handoff | WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti |
| Cisco Support | CCX 4.0 Supported Driver/Utility also available from Ubiquiti |
