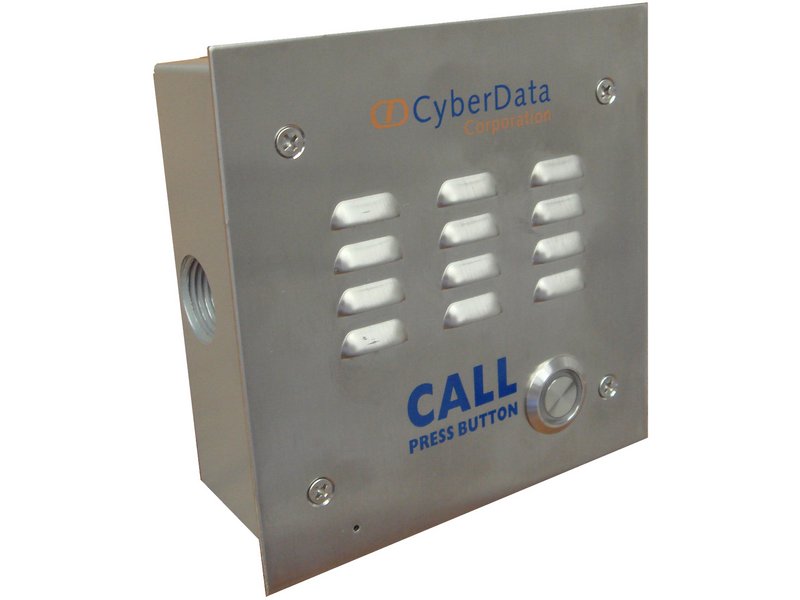

CyberData VoIP Intercom

Характеристики

The CyberData SIP-enabled VoIP Intercom is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) two-way communications device that easily connects into existing local area networks (LANs) with a single cable connection. The intercom is compatible with most SIP-based IP PBX servers that comply with SIP RFC 3261. Its tamper-resistant design allows unit to be mounted securely and safely.

CyberData VoIP Intercom Typical Applications:

• Access control
• Door entry phone
• Emergency phone
• Mass notification

CyberData VoIP Intercom Typical Features:

• PoE 802.3af enabled (Powered-over-Ethernet)
• SIP Support
• Dual-speed Ethernet 10/100 Mpbs
• Adaptive full-duplex voice operation
• Network web management
• Network adjustable speaker volume
• Network adjustable mic sensitivity
• Network downloadable firmware
• Doubles as a paging speaker
• Tamper-proof design
• Dry relay contact for auxiliary control
• Two-way hands-free communications
• Configurable relay-on time
• Connects to a designated PBX extension

CyberData VoIP Intercom Configurable Feature List:

1) Network Adjustable Volume

2) Network Adjustable Microphone Gain

3) Open Door Sensor
If wired to a switch on a door, this event can trigger the following multiple actions based on a time value entered:

• Flash the LED
• Activate the relay
• Send an audio message to a specific extension
• Send and repeat an audio message to the Intercom's speaker
• Select either door sensor normally open or closed contacts

4) Tamper Sensor
The Intercom has a built-in optical intrusion detector that will trigger when face plate is removed from the housing. Multiple actions (based on the values set) can trigger different events such as the following:

• Flash the LED
• Activate the relay
• Send an audio message to a specific extension
• Send and repeat an audio message to the Intercom's speaker

5) Auto Answer

• Intercom will auto-answer or ring until the Call button is pressed

6) Relay Control

• Activate when the Intercom is being called
• Activate on call out (time value can be set)
• Activate remotely via DTMF (time value can be set)

7) Button Light

• Button light on or off at idle state

8) Ring back Tone

• Enable / disable ringback tone

Ethernet I/F	10/100 Mpbs
Power Input	PoE 802.3af compliant or +5 volts at 1000mA
Protocol	SIP RFC 3261 Compatible
Payload Types	G711
Regulatory Compliance	FCC Class A, UL 60950
Warranty	2 Years Limited
Dimensions	5" x 5" x 2.5"
Part Number	010935
