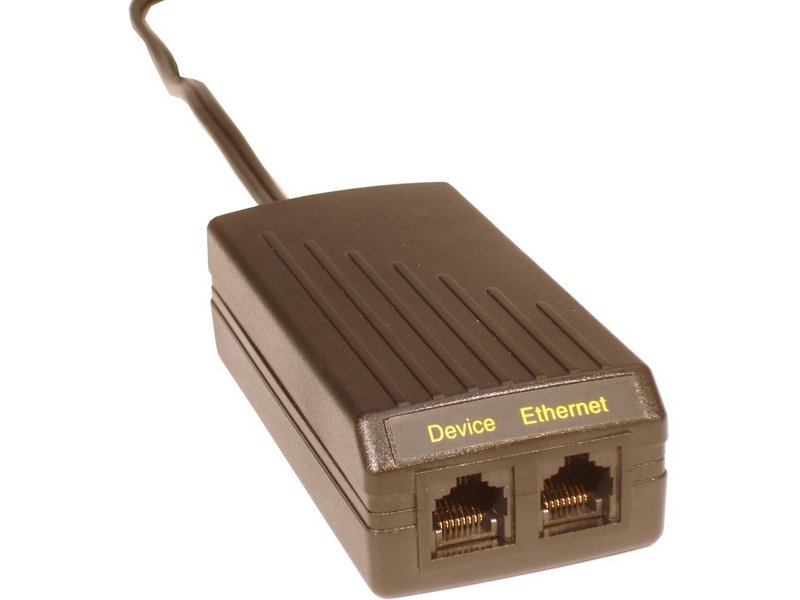

CyberData PoE Power Injector

CyberData PoE Power Injector eliminates the need for a PoE enabled hug.

Виробник:

Код товару: # 1725

на
складі

Характеристики

The CyberData PoE Power Injector eliminates the need for a PoE enabled hug. In a typical installation, the Power Injector is connected between a non-PoE hub and a CyberData paging device, providing inline power capability to an Ethernet Cat 5 cable.



Input Voltage 90 VAC to 264 VAC
Input frequency 47 Hz to 63 Hz
Inrush current less than 60A at 230VAC cold start, 25
Output Voltage +48VDC
Output current 0.35 A
Meet green mode <0.5W (at no load)
Efficiency 75% - 85% depends on models
Holdup time 16 ms typical at rated load and 115 VAC
Over voltage protection latch off
Short circuit protection Auto recovery
Over current protection Auto recovery
Operating temperature -20C to 60C, above 40C, derate at 2.5% per degree
Cooling free air convection
Storage temperature -20C to +85C
EMI FCC class "B", CISPR22 level "B"
EMS EN61000-4-2, -3, -4, -5, -6, -11
Safety UL 60950-1, LPS, CSA C22.2 No. 60950-1, TUV EN60950-1
